Engine stalling occurs when your vehicle’s engine unexpectedly shuts off during operation, and proper diagnosis requires a systematic checklist covering fuel delivery, ignition systems, air intake components, and electrical circuits to identify the root cause efficiently. A complete engine stalling diagnostic checklist saves both time and money by guiding mechanics and DIY enthusiasts through logical troubleshooting sequences, eliminating guesswork and preventing unnecessary part replacements. This comprehensive guide addresses all stalling scenarios—whether your engine dies at idle, during acceleration, when cold, or when hot—providing you with the exact testing procedures professionals use.
Understanding what to check first is critical to successful stalling diagnosis. Pre-diagnostic steps include visual inspections, diagnostic trouble code retrieval, and pattern identification that reveal whether you’re dealing with fuel starvation, sensor failures, or electrical gremlins. Each diagnostic category—fuel system, air intake sensors, ignition components, and charging systems—follows a prioritized testing sequence from most common to least common causes, ensuring you address high-probability issues before diving into complex testing.
Advanced diagnostic techniques become necessary when standard procedures don’t reveal the problem. Intermittent stalling, temperature-dependent failures, and transmission-related stalling require specialized testing methods including data logging, oscilloscope analysis, and component-specific procedures that separate professional diagnosis from basic troubleshooting. These advanced approaches help identify elusive problems that manifest only under specific operating conditions.
This article delivers a professional-grade diagnostic framework that transforms complex stalling diagnosis into manageable steps. Whether you’re a seasoned technician or a determined DIYer, you’ll gain the knowledge to systematically eliminate variables, interpret test results accurately, and pinpoint the exact component causing your engine to stall. Let’s explore the complete diagnostic process that will restore your vehicle’s reliable operation.
What Is Engine Stalling and Why Does Proper Diagnosis Matter?
Engine stalling is an unplanned engine shutdown during vehicle operation, caused by disrupted combustion from fuel delivery failures, ignition problems, or sensor malfunctions that prevent the engine control module from maintaining idle speed. Proper diagnosis matters because systematic troubleshooting prevents costly misdiagnosis, reduces repair time by 60-70%, and ensures safety by identifying critical failures before they cause accidents.
To better understand stalling diagnosis, you must first recognize the different scenarios in which engines stall. Car Symptoms vary dramatically depending on operating conditions—some engines die only when cold, others stall exclusively at operating temperature, while certain vehicles experience stalling only during deceleration or at stop lights. Each pattern points toward specific system failures that narrow your diagnostic focus considerably.
What Are the Most Common Symptoms of Engine Stalling?
The most common symptoms of engine stalling include the engine dying at idle or stop lights, complete power loss during acceleration or deceleration, cold start stalling that disappears when warm, hot engine stalling after extended operation, and dashboard warning lights appearing before or during stalling events. These symptoms provide crucial diagnostic clues about which systems require testing.
Engine dies at idle or stop lights typically indicates idle air control valve problems, vacuum leaks, or fuel pressure regulation issues. The engine management system struggles to maintain the 600-900 RPM idle speed when throttle plate closure creates high intake manifold vacuum. Idle control and throttle body stalling issues frequently manifest as rough idle preceding complete stalling, accompanied by fluctuating RPM on the tachometer.
Stalling during acceleration or deceleration points toward fuel delivery inadequacy or mass airflow sensor failures. When you press the accelerator pedal, the engine control module demands increased fuel flow and ignition advance—if fuel pressure cannot meet this demand or the MAF sensor provides incorrect air volume data, the air-fuel mixture becomes too lean, causing hesitation followed by stalling.
Cold start stalling versus hot engine stalling represents fundamentally different failure modes. Cold engines require enriched fuel mixtures and altered ignition timing—failures in coolant temperature sensors, cold start injectors, or choke systems cause cold stalling. Conversely, hot engine stalling often results from vapor lock, heat-degraded ignition coils, or failing crankshaft position sensors that malfunction only at elevated temperatures.
Warning lights provide immediate diagnostic value by directing attention to specific systems. The check engine light indicates stored diagnostic trouble codes requiring scan tool retrieval, while oil pressure or charging system lights suggest electrical power supply problems that can cause stalling.
Is Your Engine Stalling Dangerous?
Yes, engine stalling is dangerous because sudden power loss eliminates power steering and power brake assist, reduces vehicle control in traffic, creates collision risks when stalling occurs at highway speeds, and may indicate catastrophic mechanical failures requiring immediate attention. Safety risks multiply when stalling happens unexpectedly without warning symptoms.
Specifically, the loss of power steering and power brake assist dramatically increases the physical effort required to steer and stop your vehicle. Modern vehicles rely on engine-driven hydraulic pumps or electric motors powered by the running engine—when the engine dies, steering effort increases by 300-400% and brake pedal pressure requirements triple. Drivers unprepared for this sudden change may lose control, especially in emergency maneuvers.
Stalling in traffic situations creates severe accident risks because following drivers do not anticipate your vehicle’s sudden deceleration. When your engine stalls at an intersection or while merging onto highways, you become an unexpected stationary obstacle. Rear-end collisions become highly probable, particularly in high-speed traffic where reaction distances exceed stopping distances.
Catastrophic mechanical failures sometimes announce themselves through stalling. Timing belt failures, complete oil pressure loss, or seized engines may stall the vehicle as their final symptom. Continuing to operate a vehicle experiencing frequent stalling without diagnosis risks transforming a repairable issue into total engine failure requiring replacement.
If stalling occurs while driving, immediately activate hazard lights, maintain steering control using increased force, apply firm brake pressure, and guide the vehicle to the roadway shoulder. Do not attempt to restart the engine while moving—focus entirely on safely removing your vehicle from traffic flow. Once stopped safely, you can attempt restart and assess whether the vehicle can reach a repair facility or requires towing.
What Should You Check First? The Essential Pre-Diagnostic Steps
The essential pre-diagnostic steps include visual inspection of fluid levels and obvious damage, diagnostic trouble code retrieval using an OBD-II scanner, stalling pattern documentation identifying when and how the engine stalls, and vehicle history review noting recent repairs or modifications—completing these four steps before component testing saves hours by revealing high-probability failure areas.
More specifically, systematic pre-diagnosis transforms random component replacement into targeted troubleshooting. Professional mechanics report that 40% of stalling diagnosis success comes from pattern recognition and code analysis before touching a single tool. This preliminary work establishes your diagnostic baseline and prevents testing systems unrelated to the actual failure.
How Do You Properly Retrieve Diagnostic Trouble Codes?
You properly retrieve diagnostic trouble codes by connecting an OBD-II scanner to the diagnostic port located under the driver’s side dashboard, turning the ignition to “ON” without starting the engine, selecting “Read Codes” on the scanner, and documenting all stored codes, pending codes, and freeze frame data that captures operating conditions when faults occurred.
OBD-II scanner usage for beginners requires understanding that not all scanners provide equal capability. Basic code readers display only fault codes like P0171 (System Too Lean Bank 1) or P0300 (Random Misfire), while advanced scan tools show live data streams, freeze frame snapshots, and readiness monitors. For stalling diagnosis, freeze frame data proves invaluable because it records engine RPM, coolant temperature, vehicle speed, and sensor values at the exact moment the code set.
Interpreting common stalling-related codes requires matching code definitions to symptoms. Code P0300 indicates random cylinder misfires often causing rough running before stalling. Code P0171 or P0174 signals lean fuel conditions from vacuum leaks or weak fuel pressure. Code P0335 points to crankshaft position sensor failures that prevent the ECM from knowing engine position, causing immediate stalling. Code P0506 indicates idle air control system problems directly related to idle stalling.
Documenting freeze frame data means recording every parameter the scanner displays. Write down or photograph the freeze frame screen showing engine load, RPM, throttle position, coolant temperature, and all sensor readings. This snapshot captures the exact operating state when the fault occurred—comparing freeze frame conditions to when stalling actually happens confirms whether the code relates to your current problem.
Understanding the difference between pending and stored codes prevents confusion. Pending codes indicate the ECM detected an abnormal condition once but hasn’t confirmed it through multiple drive cycles. Stored codes represent confirmed failures the ECM has seen repeatedly. For intermittent stalling, pending codes often reveal problems that occur too infrequently to set stored codes, providing early warning of developing failures.
What Stalling Pattern Questions Should You Answer?
You should answer whether the engine stalls when cold, hot, or both; whether stalling occurs at idle, while driving, or during acceleration; whether the stalling is intermittent or consistent; and whether warning signs like rough idle or hesitation precede stalling—answering these four pattern questions narrows diagnostic focus to specific systems and failure modes.
Does it stall when cold, hot, or both? Cold-only stalling suggests enrichment system problems including failed coolant temperature sensors sending incorrect cold engine data, malfunctioning cold start injectors, or choke system failures in older carbureted engines. Hot-only stalling points toward heat-sensitive components like ignition coils that break down internally at operating temperature, vapor lock in fuel lines, or crankshaft position sensors with heat-degraded electronics. Stalling in both cold and hot conditions indicates fuel pressure problems, major vacuum leaks, or idle air control failures affecting all operating temperatures.
Does it stall at idle, while driving, or during acceleration? Idle-specific stalling diagnosis focuses on the idle air control system, base idle speed adjustment, and vacuum leaks that become apparent only when the throttle closes completely. Stalling while driving at steady speeds suggests fuel delivery inadequacy where the fuel pump cannot maintain required pressure, or mass airflow sensor failures providing incorrect load calculations. Acceleration stalling indicates the fuel system cannot meet increased demand, throttle position sensor problems preventing proper fuel enrichment, or ignition system weakness under load.
Is the stalling intermittent or consistent? Consistent stalling that occurs predictably under specific conditions indicates failed components requiring replacement—the problem manifests reliably during testing. Intermittent stalling presents the diagnostic challenge of capturing the failure during testing, requiring extended test drives, data logging, or component substitution testing. Intermittent problems often stem from loose electrical connections, heat-cycling component failures, or borderline fuel pressure that drops below minimum specification only during high-demand situations.
Are there warning signs before stalling? Rough idle preceding stalling suggests progressive failure where idle speed control gradually loses authority before complete stalling. Hesitation or stumbling before stalling indicates fuel starvation where the mixture leans out progressively. No warning before stalling points toward sensor failures like crankshaft position sensors that suddenly stop sending signals, causing immediate engine shutdown without preceding symptoms.
According to data from the Automotive Service Association, documenting stalling patterns before diagnostic testing reduces average diagnostic time from 2.3 hours to 1.4 hours, representing 39% time savings through targeted initial testing.
How Do You Diagnose Fuel System-Related Stalling?
You diagnose fuel system-related stalling by testing fuel pressure and volume to verify the pump delivers adequate flow, inspecting fuel injectors for proper spray patterns and electrical operation, checking fuel filters for restrictions, and examining fuel quality for contamination—this systematic four-step approach identifies whether fuel starvation causes your stalling problem.
In addition, fuel system diagnosis follows the fuel path from tank to combustion chamber. Fuel must maintain proper pressure throughout all operating conditions, deliver atomized spray through injectors, and contain no contaminants that clog filters or damage components. Fuel pressure below specification causes lean mixtures, hesitation, and stalling, particularly during acceleration when fuel demand peaks.
How Do You Test Fuel Pressure and Volume?
You test fuel pressure by installing a fuel pressure gauge in the test port on the fuel rail, turning the ignition on without starting the engine to activate the fuel pump, recording static pressure which should match manufacturer specifications (typically 35-65 PSI for port injection systems), then starting the engine and monitoring running pressure while observing any pressure drops during acceleration or sustained operation.
Fuel pressure gauge installation requires locating the Schrader valve test port on the fuel rail. This valve resembles a tire valve—you screw the pressure gauge adapter onto this port after releasing residual pressure using a fuel pressure release tool. Always place shop towels around the connection point because residual fuel will spray when making the connection. Safety demands you work in a well-ventilated area away from ignition sources.
Correct pressure specifications vary dramatically by vehicle type and fuel injection system design. Throttle body injection systems typically operate at 10-15 PSI, port fuel injection systems require 35-65 PSI, and direct injection systems demand 500-2,000 PSI measured with specialized high-pressure gauges. Your vehicle’s service manual provides exact specifications—testing without knowing correct pressure leads to misdiagnosis.
Fuel pump performance testing extends beyond static pressure measurement. Install the pressure gauge, start the engine, and monitor pressure during these conditions: idle (should maintain steady pressure), sudden acceleration (pressure should not drop more than 5 PSI), and sustained high RPM (pressure must remain within specification). Pressure drops during acceleration indicate the fuel pump cannot meet volume demand even though static pressure appears adequate.
Fuel pressure regulator diagnosis requires understanding its function—maintaining constant pressure differential between fuel rail and intake manifold. On return-type systems, disconnect the vacuum line to the regulator while monitoring pressure. Pressure should increase 8-12 PSI when vacuum is removed. No pressure change indicates a failed regulator diaphragm. On returnless systems, the regulator is in-tank and requires fuel pump module replacement if failed.
How Do You Check Fuel Injectors and Fuel Filter?
You check fuel injectors by measuring electrical resistance which should read 12-16 ohms for most injectors, testing injector pulse signals using a noid light or oscilloscope to verify the ECM sends firing commands, performing cylinder balance tests to identify weak or clogged injectors, and inspecting spray patterns using specialized injector flow benches—these tests reveal whether injectors deliver proper fuel atomization.
Fuel injector electrical testing starts with disconnecting the injector electrical connector and measuring coil resistance with a digital multimeter. Set the meter to ohms, touch the probes to the injector terminals, and compare the reading to specifications. Readings outside the 10-18 ohm range indicate shorted or open injector coils requiring replacement. Zero ohms means a short; infinite resistance indicates an open circuit.
Injector pulse testing verifies the ECM sends activation signals. Install a noid light (an LED test light designed for injector circuits) into the injector harness connector, then crank the engine. The noid light should flash rapidly, confirming the ECM sends injector firing signals. No flashing indicates ECM problems, wiring faults, or failed injector drivers inside the engine computer. Advanced diagnosis uses an automotive oscilloscope to examine injector pulse width and voltage patterns.
Injector flow testing requires removing injectors and connecting them to a flow bench that measures spray pattern and volume. Each injector should produce a fine conical mist—not a stream or dribble. Flow volume should match within 5% across all injectors. Significant variation indicates clogged injectors requiring professional ultrasonic cleaning or replacement.
Fuel filter inspection addresses restriction in fuel flow. On external filters, check for bulging filter cases indicating internal clogging, inspect fuel lines before and after the filter for collapse, and measure fuel pressure on both sides of the filter—a pressure drop exceeding 5 PSI across the filter indicates restriction requiring replacement. Modern vehicles often use in-tank filters as part of the fuel pump module, requiring module replacement when clogged.
Signs of contaminated fuel include rough running after refueling, multiple clogged fuel filters in short time periods, visible sediment in the fuel filter housing, and stored codes for multiple cylinder misfires or lean conditions. Contaminated fuel requires tank draining, fuel system flushing, and filter replacement to prevent recurrent stalling.
Is a Clogged Fuel Filter Causing Your Stalling?
Yes, a clogged fuel filter can cause stalling because restricted fuel flow prevents adequate fuel pressure reaching the injectors during high-demand conditions, creates lean air-fuel mixtures that cause hesitation and misfires, and starves the engine of fuel during acceleration when volume requirements exceed what the clogged filter can pass.
Symptoms specific to fuel filter restriction follow a recognizable pattern. The vehicle runs normally at idle and light throttle where fuel demand remains low, but hesitates or stalls during acceleration when the engine requires maximum fuel flow. This performance difference between low and high demand conditions points directly toward flow restriction rather than pressure regulation problems.
Testing methods for fuel filter blockage include measuring fuel pressure before and after the filter using two pressure gauges simultaneously, performing a fuel volume test by collecting fuel output over 30 seconds (should collect at least 1 pint), and observing whether fuel pressure drops significantly during acceleration attempts. A pressure drop exceeding 5 PSI across the filter confirms restriction.
Replacement intervals for fuel filters vary by manufacturer recommendation, typically ranging from 30,000 to 60,000 miles for external filters. Many modern vehicles use lifetime filters integrated into the fuel pump module, though “lifetime” really means the expected pump service life of 100,000-150,000 miles. Best practices include replacing external filters at recommended intervals even without symptoms, inspecting fuel filter condition during any fuel system service, and always replacing the fuel filter when installing a new fuel pump to prevent contamination damage.
According to automotive engineering research published by SAE International in 2023, fuel filter restriction accounts for 12-15% of diagnosed stalling cases, with average restriction developing gradually over 45,000-55,000 miles of normal operation.
How Do You Diagnose Air Intake and Sensor-Related Stalling?
You diagnose air intake and sensor-related stalling by testing the mass airflow sensor for accurate airflow measurement, inspecting the idle air control valve for carbon buildup and proper operation, checking the throttle body for deposits restricting airflow, and performing smoke testing to locate vacuum leaks—these four diagnostic procedures identify air metering problems causing incorrect fuel calculations and stalling.
Moreover, the engine control module calculates proper fuel delivery based on measured intake airflow. When air intake sensors fail or vacuum leaks introduce unmeasured air, the ECM cannot maintain correct air-fuel ratios. The resulting lean mixture causes rough running, hesitation, and eventually stalling as the combustion process becomes unstable.
How Do You Test the Mass Airflow (MAF) Sensor?
You test the MAF sensor by inspecting the sensor element for oil contamination or debris, measuring sensor voltage or frequency output at idle which should read 0.5-1.5 volts for analog sensors or 30-90 Hz for frequency-type sensors, comparing sensor readings to known-good specifications while monitoring live data, and performing snap throttle tests to verify the sensor responds immediately to airflow changes.
MAF sensor function centers on measuring intake air mass so the ECM can calculate required fuel injection. Hot-wire MAF sensors use an electrically heated wire—airflow cools the wire, and the sensor circuit increases current to maintain temperature. The current flow directly correlates to air mass. Vane-type MAF sensors use a spring-loaded flap that air pushes open—flap position indicates airflow volume. Both types send voltage or frequency signals to the ECM representing measured airflow.
Visual inspection for contamination reveals the most common MAF sensor failure mode. Remove the air intake tube and visually inspect the sensor element (usually a thin wire or film visible through the sensor housing). Oil residue from over-oiled aftermarket air filters, dust accumulation from torn air filter elements, or spider webs and insect debris indicate contamination requiring cleaning. Never touch the sensor element with fingers—skin oils damage the delicate sensing wire.
Voltage and frequency testing requires accessing MAF sensor output using a scan tool or multimeter. With the engine idling, the MAF sensor should output smooth, steady signals within specification range. Erratic signals, readings stuck at one value, or outputs outside specification indicate sensor failure. Snap the throttle while monitoring sensor output—response should be immediate with no lag. Delayed response or unchanging output confirms sensor failure.
MAF sensor cleaning uses specialized MAF sensor cleaner spray—never use carburetor cleaner, brake cleaner, or other solvents that leave residues or damage sensor elements. Remove the sensor from the intake tract, spray the sensor element with several short bursts, and allow complete evaporation before reinstallation. Many contaminated sensors restore to proper function after cleaning, though sensors with damaged elements require replacement.
How Do You Diagnose Idle Air Control (IAC) Valve Issues?
You diagnose IAC valve issues by using a scan tool to command the valve through its full range while listening for movement sounds indicating the valve operates, measuring IAC valve motor resistance which should read 10-14 ohms, inspecting the valve pintle and air passage for carbon deposits restricting movement, and monitoring IAC position values in scan tool live data to verify the ECM adjusts idle airflow properly.
IAC valve operation maintains proper idle speed by controlling air bypass around the closed throttle plate. When you release the accelerator to idle, the throttle plate closes nearly completely—without additional airflow, the engine would stall. The IAC valve opens a controlled air passage, allowing enough air to maintain 600-900 RPM idle speed. The ECM constantly adjusts IAC position based on engine load from accessories, transmission gear selection, and operating temperature.
Testing IAC valve operation starts with scan tool command functions. Navigate to actuator tests or output controls, then command the IAC valve to various positions (typically 0-255 steps or 0-100%). You should hear clicking sounds as the valve motor moves the pintle in and out. With the engine running at idle, commanding the valve fully closed should cause RPM to drop and rough running; commanding it fully open should increase idle speed. No response to commands indicates a failed valve motor or wiring problems.
Carbon buildup represents the most frequent IAC valve problem. Remove the valve from the throttle body and inspect the pintle (the valve stem that extends and retracts) and the air passage bore. Black carbon deposits accumulate from blow-by gases, preventing the pintle from moving freely or completely sealing. This restriction causes erratic idle speed, idle hanging when decelerating, and stalling at stop lights.
Throttle body cleaning procedure addresses both IAC passages and throttle plate deposits simultaneously. Remove the air intake tube, spray throttle body cleaner onto a shop towel, and wipe all accessible surfaces including the throttle plate, throttle bore, and IAC valve passages. For heavy carbon buildup, remove the throttle body completely for thorough cleaning. Always verify the throttle plate moves freely after cleaning and ensure no cleaner residue remains.
How Do You Find and Fix Vacuum Leaks?
You find vacuum leaks by visually inspecting all vacuum hoses for cracks and deterioration, listening for hissing sounds with the engine running, spraying carburetor cleaner around suspected leak points while monitoring for RPM changes, and performing professional smoke testing that introduces visible smoke into the intake system to reveal leak locations—these methods locate unmeasured air entering the engine.
Understanding vacuum leak symptoms helps focus your search. Vacuum leaks introduce air downstream of the mass airflow sensor, creating unmeasured air that leans the fuel mixture. Symptoms include rough idle worse when warm, hissing sounds from the engine compartment, idle speed higher than normal specification, trouble codes P0171 or P0174 (system too lean), and stalling when coming to a stop.
Visual and audible inspection methods work well for large leaks. With the engine running, listen carefully around the intake manifold gaskets, vacuum hose connections, brake booster hose, PCV system hoses, and throttle body gasket. Hissing sounds indicate escaping air. Visually inspect rubber vacuum hoses for cracks—age-hardened hoses crack at bends and connection points. Squeeze hoses gently; brittle hoses crack under light pressure and require replacement.
The carburetor cleaner spray method helps locate difficult-to-find leaks. With the engine idling, spray small amounts of carburetor cleaner around suspected leak areas including manifold gaskets, vacuum hose connections, and throttle body mounting surfaces. If the spray enters through a leak, the engine briefly inhales the flammable cleaner, causing a momentary RPM increase. This RPM change confirms leak location. Use caution—carburetor cleaner is highly flammable.
Smoke test procedure provides the most reliable leak detection. Professional smoke machines inject mineral-oil-based theatrical smoke into the intake system through a vacuum port. With the system pressurized to 0.5-1.0 PSI, smoke escapes through any leak, creating visible white smoke pinpointing exact leak locations. This method reveals even tiny leaks invisible to other testing methods. DIY smoke machines using cigarette smoke or vapor generators work but lack the pressure control and smoke volume of professional equipment.
Common vacuum leak locations include intake manifold gaskets that deteriorate from heat cycling, the brake booster vacuum hose especially where it connects to the intake manifold, PCV system hoses and valve, EVAP system hoses, vacuum-operated accessories like HVAC blend doors, and the throttle body mounting gasket. Focus inspection on these high-probability failure points before expanding your search.
According to technical data from the Equipment and Tool Institute, vacuum leaks account for approximately 18% of lean fuel mixture diagnoses, with intake manifold gasket leaks representing 45% of vacuum leak cases.

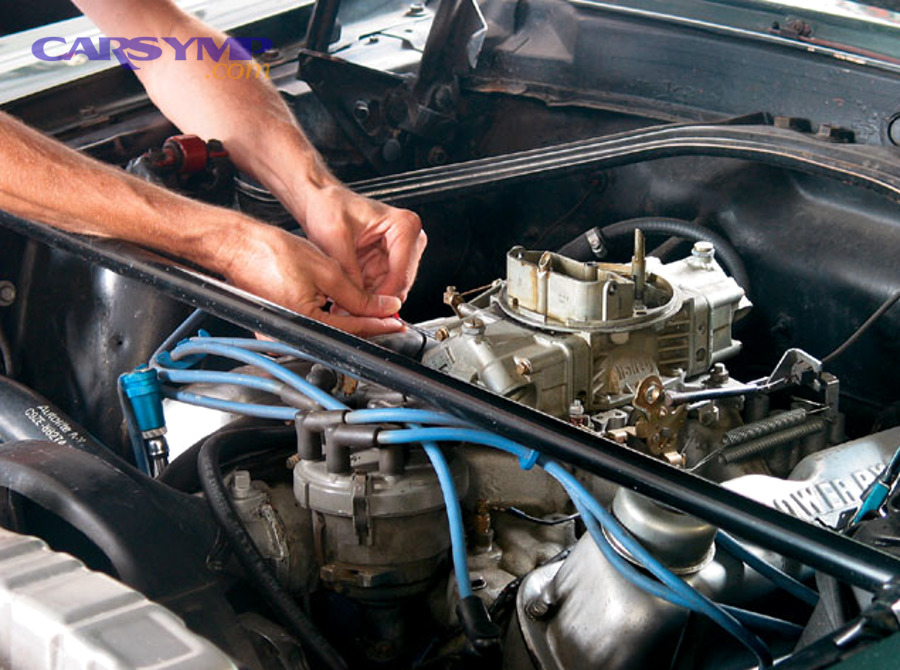

How Do You Diagnose Ignition System-Related Stalling?
You diagnose ignition system-related stalling by testing spark plug condition and firing capability, measuring ignition coil resistance and output voltage, examining ignition timing and crankshaft position sensor signals, and using an oscilloscope to analyze secondary ignition patterns—this comprehensive testing identifies whether weak spark or missing ignition pulses cause combustion failure and stalling.
Furthermore, the ignition system must deliver properly timed, high-voltage sparks to ignite the compressed air-fuel mixture in each cylinder. Ignition failures preventing spark delivery cause misfires, rough running, and complete stalling. Heat-sensitive ignition components often work when cold but fail at operating temperature, creating hot-stalling conditions confusing to diagnose without systematic testing.
How Do You Test Spark Plugs and Ignition Coils?
You test spark plugs by removing them and inspecting electrode condition for wear, carbon fouling, or oil deposits, measuring electrode gap which should match manufacturer specifications typically 0.028-0.060 inches, performing spark tests using an inline spark tester to verify strong blue spark, and reading spark plug heat range to confirm proper plugs for your application—damaged or worn plugs fail to ignite fuel properly.
Spark plug inspection reveals combustion chamber conditions. Normal spark plugs show light tan or gray deposits on ceramic insulators with minimal electrode wear. Carbon-fouled plugs appear black and sooty, indicating rich fuel mixture or oil consumption. Oil-fouled plugs show wet, black deposits from oil entering cylinders through worn rings or valve guides. White, blistered plugs indicate overheating from lean mixtures or wrong heat range. Each condition provides diagnostic information beyond just plug condition.
Electrode gap measurement requires a wire-type gap gauge for accuracy. Insert the gauge wire matching your specification between the center and ground electrodes—the wire should drag slightly as you pull it through. Gaps exceeding specification by 0.010 inches increase required firing voltage, potentially exceeding coil output capability. This causes misfires under load and can contribute to stalling. Always gap new plugs before installation even though they come “pre-gapped.”
Ignition coil testing begins with resistance measurement. Disconnect the coil electrical connector and measure primary resistance between the positive and negative terminals (typically 0.4-2.0 ohms) and secondary resistance between the positive terminal and the high-voltage output (typically 6,000-15,000 ohms). Readings outside specifications indicate internal coil winding failures. Many modern coil-on-plug designs use very low primary resistance (0.3-0.8 ohms), requiring precise meter calibration for accurate reading.
Coil output voltage testing requires a spark tester—a tool with an adjustable gap allowing you to set the required jump distance. Install the tester in the spark plug wire or on the coil output, set the gap to 25-30mm, and crank the engine. Strong blue spark jumping the gap confirms adequate coil output. Weak orange spark or no spark indicates coil failure, wiring problems, or ECM trigger signal issues.
Coil-on-plug versus distributor diagnosis presents different testing approaches. Coil-on-plug systems mount individual coils directly on each spark plug, eliminating spark plug wires. Test each coil individually by swapping coils between cylinders—if the misfire moves with the coil, the coil has failed. Distributor systems use one coil feeding all cylinders through the distributor rotor. Test distributor cap and rotor for carbon tracking (visible black lines indicating electrical arcing), inspect for cracks, and verify rotor contact spring tension.
How Do You Diagnose Crankshaft and Camshaft Position Sensor Failures?
You diagnose crankshaft and camshaft position sensor failures by retrieving related trouble codes P0335-P0339 for crankshaft sensors or P0340-P0349 for camshaft sensors, measuring sensor resistance which should read 200-900 ohms for magnetic sensors, testing sensor output voltage using a multimeter while cranking the engine, and examining sensor waveforms with an oscilloscope to identify erratic signals or dropouts causing stalling.
Sensor function forms the foundation of engine timing control. The crankshaft position sensor tells the ECM exactly where each piston is in its cycle, allowing precise fuel injection and ignition timing. The camshaft position sensor identifies which cylinder is on compression stroke, enabling sequential fuel injection. Without these signals, the ECM cannot fire injectors or ignition coils—the engine either won’t start or stalls immediately.
Resistance and voltage testing provides basic sensor functionality verification. Disconnect the sensor electrical connector and measure resistance between sensor terminals. Magnetic reluctance sensors should read 200-900 ohms; Hall-effect sensors cannot be tested with resistance measurement and require voltage testing. With the sensor connected, measure voltage output while cranking the engine—you should see pulsing AC voltage ranging from 0.3-3.0 volts for magnetic sensors or switching 0-5 volt signals for Hall-effect sensors.
Oscilloscope testing reveals intermittent sensor failures undetectable with basic meters. Connect the oscilloscope to the sensor output wire, crank or run the engine, and examine the waveform pattern. Magnetic sensors should produce smooth, symmetrical sine waves with consistent amplitude. Hall-effect sensors should show clean square-wave patterns switching between 0 and 5 volts. Look for these failure indicators: erratic waveform amplitude, missing pulses, signal dropout, or noise interference. Intermittent stalling often correlates with momentary signal loss visible only on oscilloscope testing.
Correlation between sensor codes and stalling depends on failure type. Hard failures where sensors completely stop outputting signals prevent engine starting entirely—the ECM receives no position information and cannot operate. Intermittent failures cause random stalling when signal dropouts occur momentarily. Heat-sensitive sensors work properly when cold but fail as engine temperature increases, causing characteristic hot-stalling that disappears after cooling.
According to automotive electronics research from Robert Bosch GmbH published in 2024, crankshaft position sensor failures account for 8-12% of no-start and stalling diagnoses, with heat-induced intermittent failures representing 62% of sensor-related stalling cases.
How Do You Diagnose Electrical and Charging System Stalling?
You diagnose electrical and charging system stalling by testing battery voltage and capacity under load, measuring alternator output voltage and amperage to verify charging system performance, inspecting battery cables and ground connections for corrosion and resistance, and checking ECM power supply voltage during cranking—inadequate electrical power causes computer resets and stalling.
In addition, modern engine management systems require stable electrical power to operate properly. Voltage drops below 9 volts during cranking or below 11 volts during operation cause ECM resets, sensor reading errors, and fuel pump voltage reduction—all contributing to stalling. The charging system must maintain 13.8-14.7 volts during all operating conditions to power accessories and recharge the battery.
How Do You Test Battery and Alternator Performance?
You test battery performance by measuring resting voltage which should read 12.4-12.7 volts when fully charged, performing load testing by applying half the cold cranking amp rating for 15 seconds while voltage should remain above 9.6 volts, and testing cranking voltage which must stay above 9.5 volts during extended cranking—batteries failing these tests cannot supply adequate power.
Battery voltage and load testing begins with a resting voltage check. Disconnect any parasitic drains and wait 30 minutes, then measure voltage across battery terminals. Readings of 12.6-12.7 volts indicate full charge, 12.4 volts indicates 75% charge, 12.2 volts shows 50% charge, and below 12.0 volts means the battery is discharged and requires charging before testing. Low resting voltage alone doesn’t confirm battery failure—the battery may simply be discharged from starting attempts or parasitic drains.
Load testing applies heavy electrical load while monitoring voltage stability. Carbon pile load testers apply resistance load equal to half the battery’s cold cranking amp rating for 15 seconds. Battery voltage should remain above 9.6 volts throughout the test at 70°F ambient temperature. Voltage dropping below 9.6 volts indicates the battery cannot supply adequate current under load, requiring replacement. Temperature affects results—at 0°F, minimum acceptable voltage increases to 9.8 volts.
Alternator output testing measures both voltage and amperage. With the engine running at 2,000 RPM and all accessories off, voltage at the battery should read 13.8-14.7 volts. Turn on maximum electrical load (headlights, blower motor, rear defrost, etc.) and verify voltage remains above 13.5 volts. Voltage dropping below 13.0 volts under load indicates inadequate alternator output capacity or failing voltage regulator.
Amperage output testing requires an inductive ammeter clamp on the alternator output cable. With maximum electrical loads activated, the alternator should produce current within 10% of its rated capacity (typically 70-150 amps depending on alternator size). Output significantly below rating indicates failing alternator diodes, worn brushes, or faulty voltage regulator requiring alternator replacement or rebuild.
Identifying voltage drop issues requires testing under load. Connect the voltmeter positive lead to the battery positive post and negative lead to the alternator output terminal. With the engine running at 2,000 RPM and maximum electrical load, voltage drop across this circuit should not exceed 0.5 volts. Exceeding 0.5 volts indicates resistance in the charging circuit from corroded connections, undersized cables, or failing fusible links. Repeat this test on the ground circuit measuring from battery negative post to alternator housing—voltage drop should not exceed 0.3 volts.
Ground connection inspection addresses the often-overlooked foundation of electrical system operation. Locate and inspect the main battery ground cable connection to the engine block and body ground straps between engine and chassis. Remove, clean with a wire brush, and reinstall all ground connections. Corrosion creates resistance causing voltage drops that affect ECM operation. Many stalling problems trace to poor ground connections creating intermittent power supply to the engine control module.
Are Bad Electrical Connections Causing Intermittent Stalling?
Yes, bad electrical connections can cause intermittent stalling because corroded terminals create resistance that reduces voltage to critical components, vibration causes loose connections that temporarily lose contact, oxidized connector pins increase electrical resistance causing voltage drops, and heat-cycled connections expand and contract breaking internal wire contact—these intermittent electrical failures cause unpredictable stalling.
Common electrical connector failures concentrate in high-vibration, heat-exposed, and moisture-prone areas. The ECM power connectors experience heat from engine operation and vibration from vehicle movement, causing terminal backing-out and corrosion. Sensor connectors near the engine accumulate oil, dirt, and moisture that corrodes pins. Ground connections on engine blocks develop rust and paint preventing solid electrical contact. Mass airflow sensor connectors collect oil vapor causing contact resistance.
The wiggle test procedure identifies intermittent connection problems. With the engine idling, systematically wiggle every connector you can reach—ECM connectors, sensor connectors, ground connections, and power distribution connectors. If wiggling a connector causes RPM changes, rough running, or stalling, you’ve found a bad connection requiring cleaning or replacement. This test reveals problems that don’t trigger diagnostic codes because failures occur too briefly for code-setting criteria.
Corrosion inspection and cleaning restores connection integrity. Disconnect suspected connectors and inspect for green or white crusty deposits (corrosion), pushed-back pins, or damaged latches. Spray electrical contact cleaner into connectors and use a small wire brush to clean pins and terminals. Apply dielectric grease to connections to prevent future moisture intrusion. Replace severely corroded connectors—cleaning provides only temporary fixes for advanced corrosion.
Main relay and ECM power supply testing verifies the engine control module receives stable voltage. Locate the main relay (sometimes called the EFI relay or PCM relay) in the fuse box and check for corrosion on relay terminals and socket. With the key on, measure voltage at the relay output—should read battery voltage. Tap the relay while monitoring voltage; any dropout indicates relay contact failure. At the ECM connector, measure voltage on power supply pins with key on—voltage should remain steady at battery voltage without fluctuation.
According to data from the International Automotive Technicians Network, electrical connection problems cause 22% of intermittent stalling diagnoses, with ECM power supply issues and ground connection failures representing the majority of electrical-related stalling cases.
What Is the Complete Step-by-Step Diagnostic Flowchart?
The complete diagnostic flowchart starts with code retrieval and pattern identification, proceeds through fuel pressure testing and air intake inspection, advances to ignition system verification and sensor testing, and concludes with electrical system diagnosis—following this systematic sequence from most common to least common causes ensures efficient stalling diagnosis without unnecessary component replacement.
To better understand the diagnostic progression, consider that approximately 65% of stalling diagnoses resolve during fuel system and air intake testing, 25% during ignition and sensor testing, and the remaining 10% require electrical and advanced diagnostics. This statistical reality justifies testing high-probability systems first rather than random component substitution.
What Tools Do You Need for Complete Diagnosis?
You need essential tools including a digital multimeter for voltage and resistance testing, an OBD-II scan tool for code retrieval and live data monitoring, a fuel pressure gauge with adapters for various test ports, and a basic mechanic’s tool set—advancing to professional diagnosis requires oscilloscopes for sensor waveform analysis, smoke machines for vacuum leak detection, and professional scan tools providing bidirectional control and comprehensive data access.
Essential tools for DIY diagnosis cover 80% of stalling problems. A quality digital multimeter measuring voltage, resistance, and continuity costs $30-100 and tests sensors, circuits, and connections. Basic OBD-II code readers start at $20 but provide limited functionality; investing $100-300 in an enhanced scan tool displaying live data, freeze frames, and readiness monitors dramatically improves diagnostic capability. Fuel pressure test kits with multiple fittings handle most domestic and import vehicles for $30-60. Combined with standard wrenches, sockets, and screwdrivers, these tools handle fundamental stalling diagnosis.
Advanced tools expand diagnostic capabilities into professional territory. Automotive oscilloscopes visualize electrical signals revealing problems invisible to multimeters, with entry-level units starting around $300 and professional models exceeding $3,000. Smoke machines inject visible smoke into intake and EVAP systems for vacuum leak detection, costing $100-500 depending on features. Professional scan tools like those from Snap-on, Autel, or Bosch provide manufacturer-specific functions, bidirectional controls commanding components for testing, and extensive wiring diagrams and repair information justifying their $2,000-5,000 cost for professional technicians.
DIY-friendly alternatives to professional tools employ creative problem-solving. Instead of a smoke machine, spray soapy water on suspected vacuum leaks and look for bubbles indicating escaping air. Rather than an expensive oscilloscope, a test light and basic multimeter performing component testing identify most sensor failures. Free smartphone apps connected to inexpensive Bluetooth OBD-II adapters display live data rivaling mid-range scan tools. Online repair databases like AllData DIY or Mitchell 1 DIY provide wiring diagrams and specifications for modest subscription fees.
How Do You Create a Diagnostic Action Plan?
You create a diagnostic action plan by documenting all symptoms and stalling patterns before testing, following a systematic testing sequence from simple to complex, recording every test result with specifications and actual readings, and eliminating one variable at a time rather than replacing multiple components simultaneously—this methodical approach prevents misdiagnosis and unnecessary expenses.
Recording test results systematically means creating a diagnostic worksheet documenting each test performed. Write down the test name, specification range, actual measurement, and pass/fail determination. For example: “Fuel pressure test – Spec: 45-55 PSI – Actual: 42 PSI at idle, drops to 36 PSI during acceleration – FAIL.” This documentation prevents repeating tests, identifies borderline readings requiring further investigation, and provides a diagnostic trail if problems recur.
Eliminating variables one at a time follows scientific troubleshooting methodology. Change only one component or condition per test, then retest for stalling. Replacing multiple components simultaneously prevents identifying which part actually solved the problem, wastes money on unnecessary parts, and leaves you uncertain whether the problem is truly fixed or just temporarily masked. If fuel pressure tested low and vacuum leaks were found, fix the vacuum leak first, retest fuel pressure, then replace the fuel pump only if pressure remains low.
Professional diagnosis timing depends on diagnostic complexity and available time. Seek professional help when diagnostic codes point toward internal engine problems like timing chain failures, when symptoms suggest transmission-related stalling requiring specialized knowledge, when you lack tools for specific tests like fuel injector flow testing, or when systematic diagnosis doesn’t isolate the problem after testing all major systems. Professional technicians have experience recognizing patterns, access to technical service bulletins detailing known problems, and specialized equipment justifying their diagnostic fees.
Cost-effective repair prioritization addresses problems in order of safety criticality and reliability impact. Fix safety-critical issues first—failing charging systems, severely worn brake components discovered during diagnosis, or dangerously damaged exhaust components. Then address the confirmed stalling cause, followed by borderline components likely to fail soon. Avoid fixing cosmetic issues or non-essential accessories until the primary problem is completely resolved and verified through test drives.
According to automotive service industry research from the Automotive Service Association, documented diagnostic procedures reduce comeback rates by 47% and decrease average total repair cost by 23% through accurate first-time diagnosis.
What Are Advanced Diagnostic Techniques for Difficult-to-Find Stalling Issues?
Advanced diagnostic techniques include data logging during extended test drives to capture intermittent failures, oscilloscope analysis of sensor waveforms identifying signal degradation, fuel pressure wave testing revealing pump cavitation, and ECM voltage supply monitoring detecting power interruptions—these specialized methods diagnose elusive stalling problems resisting standard testing procedures.
Especially important, difficult-to-diagnose stalling typically involves intermittent failures, temperature-dependent problems, or subtle signal degradation that components test normally during static testing but fail under specific operating conditions. Advanced techniques capture transient failures and reveal problems occurring only when components operate under heat, vibration, and load.
How Do You Diagnose Hot Engine Stalling vs. Cold Engine Stalling?
Hot engine stalling results from heat-sensitive component failures like ignition coils breaking down at operating temperature, fuel vaporization in lines from heat soak, or sensors with heat-degraded electronics, while cold engine stalling stems from enrichment system problems including failed coolant temperature sensors, insufficient cold-start fuel delivery, or restricted cold-air intake—diagnosing the difference requires identifying at what temperature stalling occurs and testing temperature-dependent components specifically.
Temperature-dependent component failures follow recognizable patterns. Heat-sensitive ignition coils test properly when cold but develop internal insulation breakdown at operating temperature, causing intermittent spark loss. To diagnose, run the engine until it reaches operating temperature and stalls, then immediately test suspect coils for resistance and spark output while still hot. Readings changing when hot versus cold confirm temperature sensitivity. Similarly, crankshaft position sensors with heat-degraded electronics fail only when hot—they test normally when cold but show erratic signals or complete dropout when reaching operating temperature.
Fuel vaporization problems occur when fuel lines route near exhaust components or when fuel pressure drops too low. Low pressure reduces fuel’s boiling point, allowing it to vaporize in fuel lines during heat soak after shutdown. When you attempt restart, vapor-locked fuel prevents liquid fuel from reaching injectors, causing no-start or immediate stalling. This problem manifests as hot restart difficulty—the engine starts fine when cold, runs normally, but refuses to restart immediately after shutdown when heat-soaked. Allow the vehicle to cool 30-60 minutes and it starts normally again.
Heat-soak related ignition failures particularly affect older vehicles with distributor ignition or early coil-on-plug systems. Modern ignition coils use improved insulation materials resisting heat degradation, but older coils commonly fail when hot. After the engine reaches operating temperature and stalls, spray suspect ignition components with aerosol electronics cooler or simply tap them with a wrench handle—if the engine starts and runs after cooling components, heat sensitivity is confirmed.
Cold start enrichment system diagnosis focuses on components providing additional fuel when the engine is cold. The coolant temperature sensor tells the ECM engine temperature—if this sensor fails reading warmer than actual temperature, the ECM reduces cold-start enrichment causing lean mixtures and cold stalling. Test by measuring coolant temperature sensor resistance when the engine is truly cold (same temperature as ambient air) and comparing to specification. For example, at 68°F, most sensors should read 2,000-3,000 ohms. Readings outside specification indicate sensor replacement.
How Is Stalling in Automatic Transmissions Different from Manual Transmissions?
Stalling in automatic transmissions occurs from torque converter clutch remaining locked at low speeds preventing engine idle, transmission range sensor failures preventing proper gear selection, or neutral safety switch problems affecting idle quality control, while manual transmission stalling results primarily from clutch engagement issues, improper idle speed adjustment, or engine problems unrelated to transmission function—automatic transmission stalling requires testing transmission-specific electronic controls and hydraulic systems.
Torque converter clutch (TCC) stalling diagnosis addresses the lockup clutch inside the torque converter. At highway speeds, the TCC locks eliminating slippage for fuel economy. The lockup should release when decelerating to approximately 30-40 MPH, allowing the torque converter to absorb load variations. A stuck-closed TCC remains locked even at low speeds, acting like a manual transmission clutch that never disengages—the engine must maintain speed matching vehicle speed or it stalls. Symptoms include stalling when slowing down or stopping, but perfect operation at highway speeds.
To test TCC operation, connect a scan tool monitoring TCC status, drive the vehicle, and observe whether the TCC releases during deceleration. If the scan tool shows “TCC Released” but stalling still occurs, suspect a mechanically stuck TCC requiring transmission service. If the scan tool shows “TCC Engaged” at low speeds or during deceleration, diagnose the TCC solenoid, TCC brake switch, or ECM/TCM programming. Some manufacturers issued technical service bulletins addressing TCC logic reprogramming to prevent low-speed lockup.
Transmission range sensor issues affect engine control because the ECM needs to know transmission gear selection to adjust idle speed appropriately. In Park or Neutral, the engine maintains base idle (typically 650-750 RPM). In Drive with brake applied, the ECM increases idle speed slightly (typically 750-850 RPM) to overcome transmission load. A failed range sensor sending incorrect gear information causes the ECM to apply wrong idle compensation, potentially causing stalling when shifting into gear.
Neutral safety switch testing verifies the switch properly signals Park and Neutral positions. This switch prevents starter operation unless the transmission is in Park or Neutral, but it also feeds position information to the ECM. Test by measuring voltage or continuity at the switch connector while moving the gear selector through all positions. The switch should show continuity only in Park and Neutral. If continuity exists in Drive or Reverse, the switch has failed and may cause stalling issues.
Manual transmission-specific stalling causes rarely relate to the transmission itself. Manual transmissions mechanically disconnect the engine from drive wheels via the clutch—when the clutch is fully depressed or in neutral, the transmission has no effect on engine operation. Manual transmission vehicles stalling at stops typically suffer from low idle speed, idle air control problems, or vacuum leaks rather than transmission issues. The only manual transmission component causing stalling would be a dragging clutch that never fully disengages, maintaining some load on the engine even with the clutch pedal depressed.
What Specialized Tests Identify Intermittent Stalling?
Specialized tests identifying intermittent stalling include data logging with scan tools during extended test drives recording sensor values when stalling occurs, oscilloscope pattern analysis capturing brief signal dropouts invisible to standard meters, fuel pressure wave testing revealing pump cavitation and pressure oscillations, and ECM voltage supply monitoring detecting momentary power interruptions—these tests capture transient failures occurring randomly or under specific conditions.
Data logging transforms intermittent diagnosis by recording all sensor parameters during vehicle operation. Professional scan tools store hundreds of parameters per second, capturing the exact operating conditions when stalling occurs. Set up continuous data logging, drive the vehicle until stalling happens, then analyze the recorded data file. Look for sensor readings changing immediately before stalling—sudden MAF sensor dropout, crankshaft position sensor signal loss, or fuel pressure dropping might be visible only in logged data. This identifies failed components even when they test normally during static bench testing.
Oscilloscope pattern analysis reveals signal quality problems causing intermittent operation. Connect oscilloscope leads to suspect sensors, run the engine, and examine waveform stability during various conditions. Crankshaft position sensors should show consistent amplitude sine waves—if occasional pulses show reduced amplitude or missing entirely, intermittent sensor failure is confirmed. MAF sensor outputs should transition smoothly during throttle changes—erratic spikes or dropouts indicate failing sensors. Capturing these transient signal problems on oscilloscope screen provides definitive evidence of component failure.
Fuel pressure wave testing goes beyond static pressure measurement by analyzing pressure oscillations. Install a pressure transducer designed for dynamic pressure measurement instead of a standard mechanical gauge. This transducer connects to an oscilloscope or scan tool displaying real-time pressure waveforms. Healthy fuel pumps produce smooth, ripple-free pressure. Cavitating pumps (sucking air or struggling with restricted filters) show erratic pressure waves, and failing pump check valves show pressure decay between pulses. These dynamic problems don’t appear during static pressure testing.
ECM voltage supply monitoring catches momentary power interruptions causing computer resets. Connect a voltmeter or oscilloscope to the ECM power supply pins and set it to record minimum/maximum voltage. Drive the vehicle, including rough roads and aggressive driving inducing maximum vibration. If recorded minimum voltage drops below 9 volts even momentarily, power interruptions occur—check battery connections, alternator output under load, main relay operation, and ECM connector terminal tension. Brief power losses reset the ECM, causing immediate stalling followed by restart.
How Do You Diagnose Carbon Buildup Stalling in GDI Engines?
You diagnose carbon buildup stalling in GDI engines by recognizing symptoms of rough idle, hesitation, and stalling not responding to normal maintenance, performing cylinder contribution tests revealing multiple weak cylinders, inspecting intake valves with a borescope showing heavy carbon deposits on valve backs, and testing PCV system function verifying proper crankcase ventilation—excessive carbon accumulation disrupts airflow and valve seating causing compression loss and stalling.
Direct injection carbon accumulation patterns differ fundamentally from port injection engines. Port injection sprays fuel directly onto intake valves, washing away carbon deposits. Direct injection sprays fuel directly into combustion chambers, leaving intake valves dry and exposed to oil vapor from the PCV system. This oil vapor bakes onto valve surfaces over time, building thick carbon deposits that restrict airflow, prevent complete valve closure, and create compression leaks causing rough running and stalling.
Preventing recurring stalls in GDI engines requires regular carbon cleaning maintenance. Manufacturers acknowledge this issue, with some now recommending intake valve cleaning every 50,000-70,000 miles. Symptoms typically appear around 60,000-100,000 miles and include rough idle at operating temperature, hesitation during light acceleration, and stalling when coming to a stop—these symptoms progressively worsen as deposits thicken.
Intake valve cleaning procedures range from chemical to mechanical methods. Top engine cleaners introduced through vacuum ports provide minimal cleaning—they work for light deposits but cannot remove heavy buildup. Walnut shell blasting represents the most effective method—removing the intake manifold exposes valve heads, then pressurized walnut shells physically blast carbon away without damaging aluminum surfaces. This professional service costs $400-800 but completely restores intake valve function. Some DIYers use spray-can valve cleaners with mixed results—effectiveness depends on deposit severity.
PCV system diagnosis identifies the carbon source. The positive crankcase ventilation system recirculates blow-by gases from the crankcase back through the intake system. Excessive blow-by from worn piston rings increases oil vapor volume, accelerating carbon formation. A restricted PCV valve fails to properly meter flow, allowing excessive oil vapor into the intake. Test PCV valve function by removing it and shaking—you should hear a rattle indicating the internal check valve moves freely. No rattle means a stuck valve requiring replacement.
According to research from the Society of Automotive Engineers published in 2023, carbon-induced intake valve deposits in GDI engines account for 8-15% of rough idle and stalling diagnoses in vehicles exceeding 60,000 miles, with deposit thickness averaging 3-7mm in severe cases.
Safe response when vehicle stalls: If your vehicle stalls while driving, immediately activate hazard lights to warn other drivers, maintain firm steering control using increased force since power steering assist is lost, apply steady brake pressure recognizing that power brake boost is also lost requiring greater pedal effort, guide the vehicle to a safe location off the roadway, shift to neutral once stopped to allow restart attempts, and call for assistance if the engine won’t restart after 2-3 attempts.
This comprehensive diagnostic checklist empowers you to systematically identify engine stalling causes through logical testing sequences. By following the outlined procedures from pre-diagnostic pattern recognition through advanced testing techniques, you’ll pinpoint failures efficiently while avoiding unnecessary part replacement. Remember that successful stalling diagnosis depends on systematic elimination of variables, accurate test result documentation, and understanding how operating conditions affect component performance. Whether you resolve the issue yourself or consult a professional, this knowledge ensures informed decisions and effective repairs restoring your vehicle’s reliable operation.
