A coolant puddle color guide starts with one simple goal: confirm whether the puddle is actually coolant (antifreeze) by using location, smell/feel, residue, and a quick level check—because color alone can mislead.
Next, you’ll learn what common coolant puddle colors typically suggest (green, orange/red/pink, yellow, and “clear/brown-ish”), plus what those colors can and can’t tell you about the coolant type inside your car.
Then, we’ll separate coolant from look-alikes like A/C water, engine oil, ATF, brake fluid, and washer fluid—so you don’t chase the wrong leak and miss early coolant leak symptoms.
Introduce a new idea: once you’ve identified a coolant-colored puddle, the smartest move is to judge urgency and confirm the leak source with a short, repeatable checklist before you add more coolant and hope for the best.
Is the puddle under your car coolant (antifreeze)?
Yes, a puddle under your car is likely coolant when it forms under the engine bay, has a sweet chemical odor, and feels slightly slick; it may also dry to a chalky crust and coincide with a dropping coolant level. Next, to avoid guessing based on color alone, use a fast “triage” routine—location first, then smell/feel, then residue.
Where is the puddle located relative to the engine?
Coolant leaks usually show up under the front half of the vehicle (engine bay), but the exact spot narrows your suspects:
- Front-center (behind bumper area): radiator, radiator end tanks, lower radiator hose, drain petcock, cooling fan shroud area.
- Front-left or front-right: side tanks, hose junctions, thermostat housing (often one side depending on engine layout).
- Near the passenger-side firewall area (but still dripping to the ground): heater core hoses, heater control valve, or a leak running down from the rear of the engine.
- Middle of the car: less common for coolant, but possible if lines run underbody (some vehicles) or if coolant tracks along splash shields before dripping.
A useful habit is to park, let the drip form, then note the puddle’s “center point” and look upward with a flashlight for the first wet spot. That “highest wet point” is usually closer to the source than the puddle itself.
What does the fluid smell and feel like?
A fast coolant check uses two senses—smell and slipperiness—but do it safely:
- Smell (don’t inhale deeply): coolant often has a sweet, chemical smell.
- If you notice a sweet smell inside the cabin, you may be dealing with a heater core or heater hose issue rather than a front-radiator leak—this Sweet smell in cabin vs engine bay diagnosis is a powerful clue because the cabin smell usually appears with fogging windows or damp carpet near the front footwells.
- Feel (gloved finger, tiny dab): coolant typically feels slightly oily/slick compared with plain water, but not thick like engine oil.
If the fluid feels purely watery and disappears without a trace, don’t conclude “not coolant” yet—some modern coolants can look thin when diluted, and condensation can mimic a leak. That’s why residue matters next.
Does the fluid leave a residue or dry to a crust?
Coolant often leaves evidence after it dries, especially if it’s been leaking a while:
- Crusty/white or colored residue: dried coolant can leave a chalky crust or powdery staining around hose ends, radiator seams, and the water pump area.
- Sticky feel after drying: some coolants dry slightly tacky.
- Stain pattern: coolant can form a “trail” where airflow spreads it, especially around the radiator fan path or belts.
If you see crusty deposits, treat it as a real leak until proven otherwise—small leaks often grow under heat/pressure cycles.
What do different coolant puddle colors mean?
There are 4 main coolant puddle color groups—green, orange/red/pink, yellow, and clear/brown-ish—based on dye choice and contamination level, not on “how bad” the leak is. Then, to interpret color correctly, link the puddle color to what you see in the reservoir and to any signs of contamination.
What does green coolant indicate?
Green coolant puddles usually indicate traditional “green” antifreeze dye or a coolant that’s been dyed green by the manufacturer/service fill. In practical terms, a green puddle often suggests:
- The vehicle may be running a conventional-looking green coolant, or
- Someone previously topped off with a green coolant product, or
- The coolant is older and the dye is simply recognizable.
What green does not prove:
- It does not guarantee a specific chemistry (IAT vs OAT vs HOAT).
- It does not confirm compatibility with your car without checking the owner’s manual/spec.
Use green as a starting clue, then verify what the system calls for.
What does orange, red, or pink coolant indicate?
Orange/red/pink coolant puddles are common in many newer vehicles and can point to:
- A manufacturer fill that uses orange or pink dye.
- An extended-life coolant formulation (often marketed that way), though dye ≠ chemistry proof.
- A system that’s been topped off with a red/pink coolant.
Practical meaning for drivers: these colors are easier to notice on concrete and can look “cleaner” than old green coolant—so people underestimate urgency. Don’t. A pink puddle can still mean a fast leak.
If you’re seeing pink residue near hose ends or pink splatter around the belt path, suspect a pressurized leak that sprays under load.
What does yellow coolant indicate?
Yellow puddles often mean one of three real-world scenarios:
- The coolant was manufactured as yellow (some brands do this).
- The coolant is diluted and the dye looks lighter.
- The coolant has picked up contaminants that shift its tone.
Yellow can also look similar to washer fluid under certain lighting. That’s why smell/feel and residue checks matter more than color alone.
What does clear or muddy coolant-looking fluid mean?
Clear or muddy puddles can happen when:
- Coolant is heavily diluted with water, making it look almost clear.
- Coolant is old/contaminated, picking up rust, scale, or debris (brown/tan tone).
- The leak is slow and the dye is faint, but the residue still appears later.
A muddy coolant puddle is also a “system condition” clue: it may point to corrosion in the cooling system or neglected service intervals. If the reservoir looks brown, plan for a proper inspection—not just a top-off.
Which fluids are commonly confused with coolant—and how can you tell them apart?
Coolant stands out by sweet odor and crusty residue, A/C condensation stands out by being clear and evaporating, and engine/transmission fluids stand out by oily feel and strong staining—so compare smell, evaporation, and stain behavior to separate them quickly. However, because multiple fluids can drip from splash shields, the best method is to compare a small sample and check the nearest reservoir levels.
Before the list, here’s a quick-reference table that compares the most-confused fluids by what you can observe at home:
| Fluid | Typical look on ground | Feel | Smell | After it dries |
|---|---|---|---|---|
| Coolant (antifreeze) | Green / orange / pink / yellow / diluted clear | Slightly slick | Often sweet/chemical | Crusty residue or colored staining |
| A/C condensation water | Clear | Watery | Odorless | Evaporates, no residue |
| Engine oil | Brown to black | Very slick | Oily | Dark stain, persists |
| Transmission fluid (ATF) | Red/pink to brown | Slick | Oily/chemical | Stain persists |
| Brake fluid | Clear to amber | Slippery, thin | Mild/chemical | Can damage paint; residue varies |
| Washer fluid | Blue (often), sometimes clear | Watery | Alcohol/cleaner | Minimal residue |
Coolant vs water from A/C condensation
A/C condensation is the #1 false alarm because it can form a real puddle:
- When it happens: after running the A/C, especially humid days.
- Where it drips: often near the passenger-side firewall area, sometimes closer to the middle of the car.
- Key tell: it’s clear, feels like water, and evaporates with no crust.
If the puddle appears only after A/C use and disappears without residue, it’s likely normal. If it leaves color or crust, treat it as coolant until confirmed otherwise.
Coolant vs engine oil or transmission fluid
Oil and ATF can visually confuse people when lighting is poor or the fluid is old:
- Engine oil: tends to be darker, thicker, and leaves a persistent stain.
- ATF: can be red/pink when fresher, brownish when old; still slick and staining.
Coolant usually feels less “greasy” than oil and tends to leave a chalky crust near the leak source. If you wipe a small dab on white paper, oil/ATF often leaves a greasy ring; coolant often looks more watery but may dry sticky.
Coolant vs power steering fluid or brake fluid
Power steering fluid (if applicable) and brake fluid are both important because they affect safety:
- Brake fluid: often clear to amber, thin, and can feel slippery. It may not be as oily as engine oil, but it’s not water either.
- Coolant: more likely to have that sweet chemical smell and a dyed color.
If you suspect brake fluid, don’t drive until confirmed—brake fluid leaks can reduce braking performance. If you suspect coolant, urgency depends on level and temperature behavior (covered next).
Coolant vs windshield washer fluid
Washer fluid often looks:
- Blue (common), sometimes clear.
- Watery, with a cleaner/alcohol scent.
Washer fluid usually won’t create crusty deposits around engine components because it’s not running through hot pressurized parts the way coolant does. If the puddle is blue and you’ve recently used the washers, check the washer reservoir level.
How urgent is a coolant-colored puddle, and is it safe to drive?
No, it’s not safe to drive with a coolant-colored puddle if the level is dropping, the temperature climbs, or warning lights appear—because overheating can escalate quickly, reduce lubrication protection, and cause severe engine damage. More importantly, urgency is not based on puddle size alone; it’s based on rate of loss and engine temperature control.
When is it an emergency (do not drive)?
Treat it as do-not-drive if any of the following are true:
- The temperature gauge rises above normal, fluctuates upward, or you see “HOT.”
- Steam appears from the engine bay.
- You must add coolant repeatedly to keep the level up.
- The leak becomes a stream or rapid drip with the engine running.
- You see warning messages that imply overheating risk.
If you’re unsure, assume emergency—modern engines can suffer damage quickly when coolant circulation fails. According to a study by Kharkiv National Automobile and Highway University from the Department of Automobile, in 2021, thermal damage to the cylinder head was found to be possible within about 10 seconds after cooling failure in a rapid coolant-loss scenario.
When can you drive a short distance to a shop?
You can sometimes drive a short distance only if all conditions are met:
- Coolant level is at/near the proper mark (checked safely).
- The temperature gauge stays stable at normal during idle and low-speed driving.
- The leak appears slow (no streaming, no rapid dripping).
- You can monitor temperature continuously and stop immediately if it rises.
Even then, avoid highways and heavy load. A small leak can become a large leak when system pressure climbs.
What dashboard warnings and temperature signs matter most?
The three signals that matter most:
- Temperature gauge behavior: rising, swinging, or creeping upward under load.
- Low coolant warning light and what it means: it often indicates the reservoir level sensor detects low coolant—sometimes early, sometimes after significant loss depending on vehicle design. Treat it as a “stop and check now” signal, not “drive until service.”
- Heater performance: if the cabin heater suddenly blows cold while the engine warms up, it can indicate low coolant or air in the system—both can precede overheating.
If the heater goes cold and the gauge rises, stop. That combination often appears when coolant can’t circulate properly.
What should you check next to confirm the leak source?
Use a 4-step coolant leak confirmation routine—check level safely, inspect common leak points, look for water pump/thermostat evidence, then pressure-test or UV-dye the system—to pinpoint the source and avoid misdiagnosis. To better understand what’s actually leaking, follow the steps in order and don’t skip the safety rules.
How to check coolant level safely
Do this only when the engine is cold:
- Check the overflow/expansion reservoir first; many cars have “MIN/MAX” marks.
- If your vehicle uses a radiator cap, never open it hot—pressurized hot coolant can cause severe burns.
- If the reservoir is below MIN, add the correct coolant mix (or distilled water in a true emergency, then correct it soon).
A practical diagnostic trick: after topping to the proper mark, note the level, drive briefly (if safe), then re-check. A noticeable drop suggests an active leak.

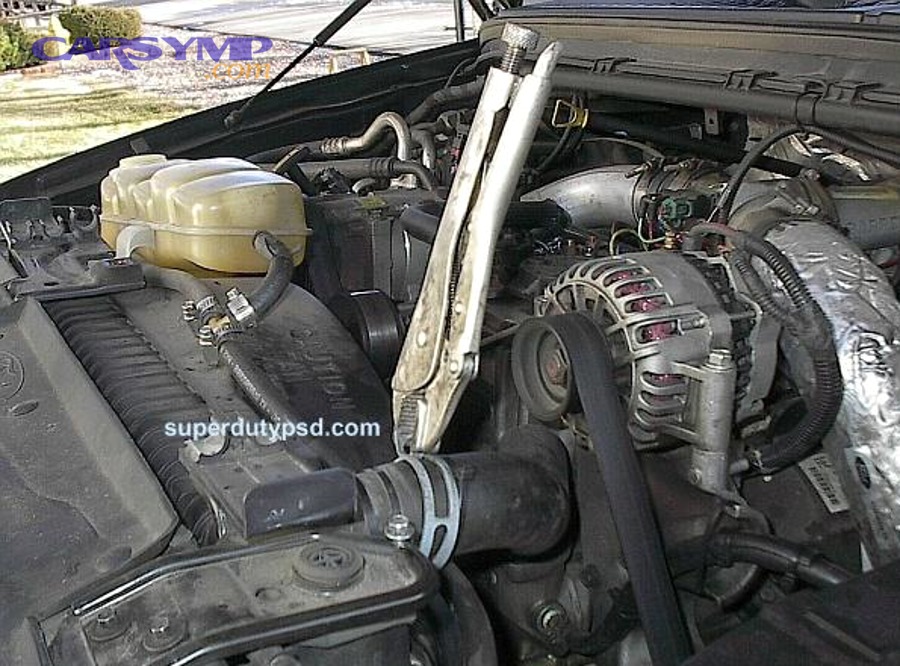

How to inspect hoses, radiator, and clamps for leaks
Start with a bright flashlight:
- Look for wet hose ends, especially at clamps.
- Check the radiator seam where plastic end tanks meet the metal core.
- Inspect the lower radiator hose area (often leaks under pressure and drips down).
- Look for spray patterns or dried splatter near the fan shroud.
If you see crusty residue, wipe it and re-check later. Fresh residue returns quickly when the leak is active.
How to check the water pump weep hole and thermostat housing
Two high-value checks:
- Water pump weep hole: many pumps have a weep hole that leaks when the internal seal begins to fail. You may see wetness or crust below the pulley area.
- Thermostat housing: gasket surfaces can seep slowly and leave a crust trail.
If you also notice a sweet smell in the cabin, expand your inspection to heater hoses and the firewall area—again, that Sweet smell in cabin vs engine bay diagnosis helps separate heater-core-side leaks from front-of-engine leaks.

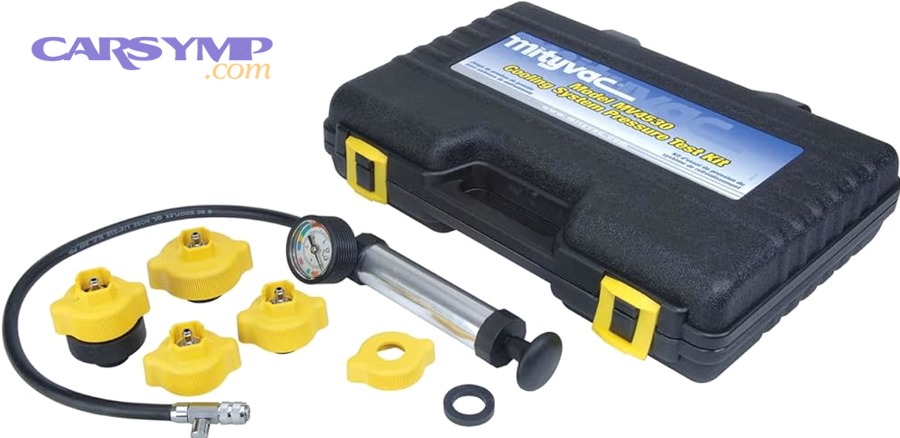

How to use a pressure test or UV dye to pinpoint a leak
A pressure test is one of the cleanest ways to confirm a leak without driving:
- With the engine cool, install a cooling-system pressure tester on the radiator neck or reservoir adapter.
- Pump to the specified pressure (often near the cap rating—follow tool/vehicle guidance).
- Watch for pressure drop and inspect for new wet spots.
UV dye is best when the leak is too small to spot:
- Add UV dye approved for cooling systems.
- Run the engine briefly.
- Use a UV light to trace the glowing path back to the leak point.
You can see the pressure-test approach in action here:
Why does coolant come in different colors—and what can change the puddle color over time?
Coolant comes in different colors because manufacturers add dye to help identify service fills and formulations, and the color you see can shift as coolant ages, mixes, or becomes contaminated—so puddle color is a clue, not a compatibility guarantee. In addition, understanding why color changes helps you avoid the most common mistake: assuming “same color” means “safe to mix.”
Do coolant colors indicate compatibility?
Color can hint at what was used, but it does not reliably confirm compatibility across brands and chemistries. Two coolants can be the same color and still be different formulas. The safer rule is:
- Follow the owner’s manual/spec (or manufacturer-approved coolant).
- If you don’t know what’s inside, treat topping off as temporary and plan to verify/correct properly.
This matters because mixing the wrong types can reduce corrosion protection and shorten component life.
How contamination changes coolant color (rust, oil, debris)
Color shifts often come from what the coolant touches and carries:
- Rust/scale: turns coolant brownish or muddy, especially if corrosion exists.
- Oil contamination: can create a milky film or darker, “dirty” look (this is a serious diagnostic sign).
- Debris: can cloud the coolant and make puddles look dull rather than bright.
If the reservoir shows sludge-like buildup, don’t rely on a color guide alone—confirm the system condition.
Does mixing coolants change the puddle color?
Yes—mixing can create:
- A blended hue (green + orange can appear brownish in certain light).
- Cloudiness if additives react poorly.
- Confusing puddle colors that make “by-color identification” unreliable.
If you suspect mixing, treat the puddle color as a symptom, then verify the correct coolant spec before any major refill.
Can UV dye or additives change the color you see?
Yes. UV dye can tint what you see on the ground, and some stop-leak or additive products can:
- Darken the fluid
- Increase cloudiness
- Leave unusual residue patterns
If you used dye recently, expect the puddle to appear brighter or slightly altered. In those cases, your best “truth source” becomes the glow trail under UV light rather than the puddle’s daylight color.
Finally, remember the practical priority: if you have a coolant-colored puddle plus coolant leak symptoms—like a rising temperature gauge, repeated top-offs, or the low coolant warning light and what it means—treat it as urgent, confirm the source, and fix the leak before overheating becomes the real problem.
