If your engine spins over normally but never catches, you need a methodical Cranks but won’t start diagnostic checklist that separates “no fuel,” “no spark,” “no compression,” and “no permission to start” (security/ECU) without guessing.
Next, you’ll learn how to protect the starter, battery, and catalytic converter while you narrow the fault fast—because repeated cranking can overheat wiring, flood cylinders, and create misleading symptoms.
Then we’ll cover quick, realistic home tests (with and without tools) that pinpoint the likely system—so you don’t replace parts blindly or miss a simple power/ground problem.
To begin, “Giới thiệu ý mới”: we’ll follow a checklist flow that moves from easiest-to-verify inputs (power, air, signals) to deeper mechanical causes, with decision points that tell you when to stop and tow.
Cranking no-start; starter circuit; battery voltage; fuel delivery; ignition spark; injector pulse; crankshaft position sensor; immobilizer; compression; timing; vacuum leak; flooding; fuse/relay; OBD-II codes; fuel pressure; spark plug; mass airflow sensor; throttle body; ground strap
What is a cranks but won’t start diagnostic checklist and how do you use it?
A Cranks but won’t start diagnostic checklist is a step-by-step HOW-TO sequence that verifies power, air, fuel, spark, and compression in a safe order so each test eliminates whole categories of causes instead of chasing random parts.
Next, use it like a flowchart: complete each step fully, record results, and only move forward when the current step is “passed” or “failed” clearly—because ambiguous results are the #1 reason DIY diagnosis stalls.
What counts as “cranking normally” in this checklist?
“Cranking normally” means the starter rotates the engine at a steady speed without slow pulses, heavy clicking, or rapid speed changes—because weak rotation can mimic a no-start even when fuel and spark are fine.
To continue, listen for a consistent rhythm and watch interior lights: if they dim severely during crank, treat it as a power/starting-speed issue first, not a fuel/ignition issue.
In practice, normal crank usually sounds smooth and even for 5–8 seconds at a time. If it slows after 2–3 seconds, stop and check battery condition, terminal tightness, and ground straps before anything else. A modern ECU may refuse to fire injectors if crank speed drops below a threshold, and that can look like “no fuel” when the real problem is voltage collapse.
Why does the checklist prioritize “inputs” before parts?
Because engines only start when the ECU sees the right inputs (voltage, crank signal, security authorization) and can deliver outputs (spark and fuel) at the correct time; missing inputs waste time on parts that cannot work yet.
Next, you’ll confirm those inputs quickly so later tests are trustworthy, not distorted by low voltage or a missing RPM signal.
For example, if the crankshaft position sensor signal is absent, you can have perfect fuel pressure and a healthy ignition coil, but injectors may not pulse and spark may be disabled. Likewise, if immobilizer authorization fails, the engine can crank all day and never start—no matter how many new components you install. The checklist’s order is designed to catch these “gatekeeper” conditions early.
How can you protect the starter, battery, and engine while diagnosing?
Yes, you can diagnose safely: crank in short bursts (5–10 seconds), rest 30–60 seconds, and keep voltage stable—because overheating the starter or draining the battery creates new failures that confuse your results.
Next, set simple limits: a maximum number of crank attempts per step, and a clear stop point when fuel odor, smoke, or unusual noises appear.
What are the “stop now” signs during cranking?
Stop immediately if you smell raw fuel strongly, see smoke, hear metallic knocking, or the cranking rhythm suddenly changes—because those signs point to flooding, electrical overheating, or mechanical timing issues.
Next, vent the area, remove the key, and inspect for leaks or hot wiring before continuing.
Flooding is especially common after repeated attempts: fuel wets spark plugs, lowers ignition efficiency, and can wash oil from cylinder walls. If you suspect flooding, pause, hold the accelerator to the floor on many vehicles (clear-flood mode varies by make), and crank briefly—then stop and re-check. If you ever see flames, use proper fire safety and do not continue DIY diagnosis.
How do you keep voltage stable for accurate testing?
Use a fully charged battery, clean tight terminals, and—if available—a maintainer or jump pack, because low voltage can disable ignition or injector operation even when parts are good.
Next, verify grounds: a loose engine ground strap can pass enough current to crank but not enough to run sensors and coils reliably.
Measure battery voltage at rest (roughly 12.6V for a fully charged lead-acid) and watch voltage during crank. If it drops dramatically, diagnose the battery/connection side first. Also check the main engine-to-chassis ground: corrosion can create a high-resistance path that only shows up under load. This is why many “mystery no-starts” disappear after cleaning terminals and tightening grounds.
What quick observations narrow the cause before any tools?
There are three fast GROUPING clues: (1) sound and crank behavior, (2) dashboard warnings/security indicators, and (3) smell/visual cues—because they point you toward power, authorization, or fuel/firing problems immediately.
Next, you’ll use these clues to choose the right “first test” instead of jumping straight to parts replacement.
What does a flashing security light suggest?
A flashing or persistent security/immobilizer indicator suggests the engine may be cranking without authorization, so spark and injection can be limited or cut entirely.
Next, try a spare key, check the key fob battery, and verify the vehicle recognizes the key before deeper fuel/spark tests.
Security systems vary, but a common pattern is: crank present, start inhibited. If a second programmed key works, you’ve isolated the fault to the key/transponder side. If neither key works, you may be facing a module/antenna ring issue or a low-voltage event that desynchronized modules. In that case, scanning for body/security codes can save hours.
How does fuel smell change your next step?
If you smell strong fuel after cranking, you likely have injection but weak/no spark or severe air/timing issues; if there’s no fuel smell at all, prioritize fuel delivery or injector pulse checks.
Next, pick a quick confirmation test (spark or fuel) based on that direction to avoid contradictory results.
Fuel smell is not a perfect test, but it’s a powerful clue. A flooded engine can still show “good fuel pressure,” so you must interpret pressure readings with context. Conversely, no smell doesn’t always mean no fuel—some direct-injection setups and sealed evaporative systems mask odors—so treat it as a hint, not proof.
How do you confirm fuel delivery without guesswork?
Start with three HOW-TO checks: listen for pump prime, verify fuel-related fuses/relays, and—if available—measure fuel pressure at the rail; this combination quickly proves whether fuel can reach the injectors.
Next, you’ll decide whether the issue is “no fuel pressure,” “pressure but no injector pulse,” or “fuel present but not igniting.”
How do you do the pump-prime and relay check correctly?
Turn the key to ON (not START) and listen near the tank area for a brief hum; then swap or test the fuel pump relay if the hum is absent—because many pumps prime for 1–3 seconds only.
Next, if you hear prime, move to pressure or injector pulse checks; if you don’t, validate power/ground to the pump circuit.
To be consistent, perform this test in a quiet area, with the rear seats folded if accessible. Some cars prime only on the first key cycle after the door opens, or only when the ECU sees a valid key. If you suspect a relay, compare it to an identical relay in the fuse box (same part number) as a quick isolation step. However, do not force relays or bypass circuits unless you know the safe procedure for your vehicle.
What does fuel pressure “good” vs “bad” actually mean?
“Good” means pressure meets spec and remains stable during crank; “bad” means low, slow to build, or bleeding down rapidly—because injectors need both pressure and volume to atomize fuel properly.
Next, interpret the pattern: low pressure points to pump/filter/regulator issues, while pressure that drops may indicate a leaking injector or check valve.
If you have a gauge, follow the service manual connection point and safety steps. Pressure specs vary widely (especially between port injection and direct injection), so focus on consistency and stability during crank. If pressure is clearly absent or extremely low, don’t keep cranking—fix the delivery problem first.
The paragraph below introduces a cost table that helps estimate what you might spend after you identify the failing system.
It includes typical U.S. ranges for parts and labor so you can compare DIY vs shop repair and avoid surprises after diagnosis.
| Likely cause category | Common examples | Typical DIY parts range | Typical shop total range |
|---|---|---|---|
| Fuel delivery | Pump, relay, clogged filter, pressure regulator | $20–$350 | $200–$1,200 |
| Ignition | Spark plugs, coils, ignition module, wiring | $15–$300 | $150–$900 |
| Sensor / signal | Crank/cam sensor, MAF issues, wiring faults | $25–$250 | $150–$700 |
| Air / intake | Stuck throttle, major vacuum leak, blocked intake | $0–$250 | $120–$600 |
| Mechanical | Timing chain/belt slip, low compression, head gasket | $0–$600+ | $800–$4,500+ |
How do you test for spark quickly and safely at home?
Test spark by verifying ignition output at the plug or coil with a proper spark tester (or a safe alternative), because a visible, consistent spark during cranking immediately splits the problem into ignition vs fuel/compression categories.
Next, you’ll check spark on more than one cylinder to avoid being fooled by a single failed coil or plug.
What’s the safest “quick spark test” method?
The safest method is an inline spark tester rated for ignition voltage, because it keeps your hands away from high-voltage arcs and gives a clear visual indicator during crank.
Next, if you don’t have a tester, avoid improvised “grounded plug” methods unless you understand ignition safety and fire risk.
Ignition voltage can be dangerous and can ignite fuel vapors. If you must use a removed spark plug for observation, do it with the fuel system disabled, in a well-ventilated area, and keep the plug body grounded properly with insulated tools. Still, a $10–$20 inline tester is usually worth it because it reduces risk and gives consistent results across cylinders.
How do you interpret weak or intermittent spark?
Weak/orange or intermittent spark often indicates low battery voltage, poor grounds, failing coils, worn plugs, or a missing crank signal that prevents steady coil firing.
Next, confirm voltage during crank and scan for RPM while cranking if you have a scan tool, because “no RPM” often means crank sensor/signal issues.
Intermittent spark can also come from a failing ignition switch or relay feeding the ignition system. On coil-on-plug engines, test more than one cylinder: if one coil is dead, the engine may still start (roughly), but if multiple coils fail or power feed is missing, you’ll get a no-start. If spark appears only once at key-on but not during crank, suspect crank signal or ECU control rather than the coil itself.
How can you check injector pulse and ECU control without advanced equipment?
You can confirm ECU fuel command using a noid light or simple logic: if there’s fuel pressure but no injector pulse, the issue is often crank signal, immobilizer, ECU power, or wiring—not the pump.
Next, you’ll verify the “permission chain”: key authorization, ECU power, crank/cam signals, then injector command.
What does “fuel pressure but no start” usually point to?
Fuel pressure without starting typically points to missing spark, wrong timing, no injector pulse, or severe air/compression issues—because fuel reaching the rail doesn’t guarantee it enters cylinders correctly or ignites.
Next, pair one fuel-side confirmation (pressure) with one ignition-side confirmation (spark) to avoid misdiagnosis.
This is where many people get stuck: they hear the pump prime and assume fuel is “fine.” But a weak pump can build pressure with low volume, a clogged injector can prevent delivery, or the ECU may not command injection at all. A noid light is simple: plug it into an injector connector and crank; flashing means injector command exists. No flash means you should stop chasing the pump and instead chase signals and authorization.
How do blown fuses and shared circuits create confusing symptoms?
A single blown ECU or injector fuse can allow cranking but disable injectors or coils, because the starter circuit is often separate from engine-management power feeds.
Next, check all engine-control fuses with a test light (not just visually), especially those labeled ECU/EFI/IGN/INJ.
Visual inspection misses hairline breaks. Many vehicles have multiple fuse panels (under-hood and cabin) with different feeds. Also, aftermarket alarms, remote starts, or audio installs can introduce splices that fail under vibration. If you find a blown fuse, don’t just replace it—ask why it blew, and inspect for shorts at the component it protects.
How do you do “fuel vs spark vs compression” quick tests in the right order?
Do three quick tests in order: verify spark, verify fuel delivery (pressure/prime), then verify compression baseline—because spark and fuel are faster and safer, while compression testing is more involved but confirms mechanical health.
Next, this order prevents you from tearing into mechanical work when the real issue is a simple power feed or missing ignition output.
What is a fast “spark-first” decision point?
If there is no spark on multiple cylinders, prioritize ignition power, crank signal, immobilizer, and ECU control before touching fuel components.
Next, if spark is strong and consistent, shift focus to fuel delivery/injector pulse and air/compression.
Multi-cylinder no-spark is rarely “all coils died at once.” It’s more often a shared power/ground, relay, ignition fuse, crank sensor, or security cut. This is why recording results (spark on cylinder 1 and 4? none anywhere?) matters. A single-cylinder spark failure points to plug/coil on that cylinder; a system-wide failure points upstream.
What is a fast “fuel-second” decision point?
If spark is present but the engine never tries to fire, verify fuel pressure and injector command; if pressure is absent, diagnose pump/relay/power; if pressure is present but no pulse, diagnose signals/authorization.
Next, only after fuel and spark are proven should you invest effort in compression and timing checks.
Engines often “try to start” (a few pops) when either fuel or spark is partially present. If it is completely dead silent with good cranking speed, suspect a total cut: no injector pulse, no spark, or no compression. If it coughs briefly on starting fluid (used carefully), that suggests fuel delivery or injector issues more than ignition—yet you must be cautious: starting fluid can damage some engines and is a fire risk if misused.
How do you check compression and timing basics without overcomplicating it?
Check compression with a gauge (or relative compression via cranking sound/scan tool), then consider timing if compression is low across multiple cylinders—because widespread low compression can indicate timing slip rather than isolated wear.
Next, you’ll use patterns: one low cylinder suggests a localized issue; many low cylinders suggests timing or major mechanical failure.
What compression results are “good enough” for a start?
Engines generally need consistent compression across cylinders to start; large mismatches or very low readings across multiple cylinders can prevent ignition even with perfect fuel and spark.
Next, if compression is low everywhere, stop and investigate timing, valve events, or washed cylinders from flooding rather than replacing sensors.
Because specs vary by engine design, focus on consistency. If three cylinders are strong and one is near-zero, that points to a valve, ring, or head-gasket issue on that cylinder. If all are low, consider a jumped timing belt/chain, incorrect cam timing after recent work, or a throttle/body issue causing restricted air (less common for uniformly low gauge readings, but it can contribute if the test procedure is wrong).
How can you suspect timing problems from symptoms alone?
Timing issues are suggested by unusually fast cranking (loss of compression), backfires through intake/exhaust, or a sudden no-start after a loud snap—because valve timing may no longer match spark and injection events.
Next, if these signs appear, avoid repeated cranking and consider professional inspection to prevent engine damage.
A broken timing belt on an interference engine can bend valves. If you suspect timing, do not keep trying “one more time.” Instead, verify cam/crank correlation with proper methods. If you recently replaced a battery, starter, or did engine work, double-check that connectors on cam/crank sensors are fully seated—simple connector issues can mimic timing faults in scan data.

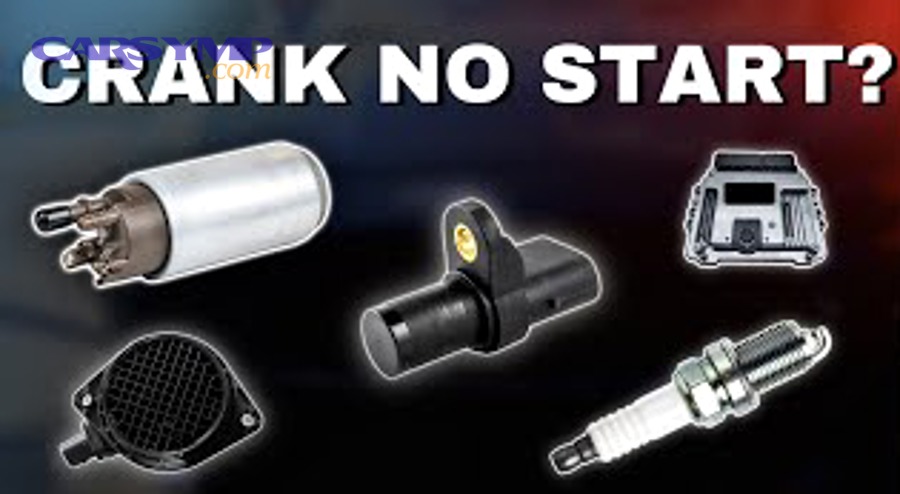

Which air, intake, and sensor issues most often mimic a no-start?
Three common groups are: major air restriction, extreme vacuum leak, and sensor inputs that disable fueling—because the ECU relies on airflow and position signals to calculate fueling and allow spark under certain conditions.
Next, you’ll use quick checks that don’t require disassembly: visual intake inspection, unplug tests (when appropriate), and OBD-II scanning for plausible signals.
Can a bad MAF sensor cause a crank-no-start?
Yes, a failed MAF or wiring fault can cause a crank-no-start on some vehicles by delivering wildly wrong airflow data, leading to an unstartable mixture—especially if the ECU doesn’t default to a safe backup mode.
Next, if your vehicle supports it, a temporary MAF unplug test can force a fallback strategy; if it starts, the MAF circuit is suspect.
This is vehicle-dependent. Some ECUs run fine on default values; others struggle. If you try an unplug test, do it only briefly and restore connections after. Also inspect the intake tract for dislodged hoses after recent air filter service—an intake boot leak after the MAF can create a huge unmetered-air problem that prevents starting or causes instant stalling.
How does a stuck throttle or blocked intake show up?
A stuck-closed throttle plate, collapsed intake hose, or severely clogged air path can prevent starting by starving air, making the mixture overly rich and causing immediate flooding.
Next, open the airbox and inspect the throttle body area for obstruction, especially after rodent activity or filter media failure.
Look for obvious blockages: rags, plastic bags, nests, or dislodged filter material. On drive-by-wire throttles, carbon buildup can sometimes cause sticking, but a complete no-start from throttle issues alone is less common than fuel/spark problems. Still, intake checks are fast and can prevent wasted hours.
What electrical problems allow cranking but prevent starting?
Yes, electrical faults can do this: shared power feeds, corroded grounds, failed relays, and module communication issues can let the starter spin while starving the ECU, coils, or injectors.
Next, you’ll test the “engine management power path” rather than the starter path, because they are often separate circuits.
Where should you look first for power/ground faults?
Start at battery terminals, engine ground strap, main fuse links, and ECU/EFI relays, because these are high-current or high-priority nodes that affect multiple systems at once.
Next, confirm voltage at ignition coils/injectors during key-on (and ideally during crank) to catch dropouts.
A quick test light on coil/injector power can reveal a missing feed instantly. If you see power with key-on but it vanishes during crank, suspect an ignition switch issue, a failing relay, or a voltage drop under load. Also consider recent battery replacement: some vehicles require module resets or have sensitive undervoltage behavior that triggers no-start until codes are cleared or adaptations reset.
How can a crank sensor failure look like “no fuel” and “no spark” at the same time?
A crank sensor failure can eliminate the RPM signal the ECU needs, so the ECU may stop firing coils and stop pulsing injectors—creating a no-spark and no-injection condition even though the engine cranks normally.
Next, check for RPM on a scan tool while cranking; “0 RPM” is a strong clue to signal loss.
Heat-soak failures are common: the sensor works cold, then fails hot, leading to intermittent no-starts after a short stop. Wiring near exhaust heat can also become brittle and open intermittently. If your no-start is intermittent and temperature-related, prioritize crank/cam signal integrity before replacing pumps or coils.
Cranking No-Start FAQ: Common questions that change the checklist
This FAQ answers the most common “what if” scenarios that alter your next diagnostic step, because small context changes (hot vs cold, recent repairs, warning lights) often determine the fastest path to the true cause.
Next, treat each answer as a branching rule: if it matches your situation, follow the recommended test order for that branch.
What if it starts with a jump pack but dies later?
That pattern points first to weak battery/voltage stability and then to charging system checks, because the ECU and ignition can behave unpredictably under low voltage even if the engine briefly catches.
Next, test alternator output and look for parasitic drains only after a stable start is achieved.
If it starts only when jumped, you may still have fuel/spark marginal issues, but voltage is your baseline problem. Fixing voltage first prevents you from “diagnosing ghosts.” Once it runs, verify charging voltage and inspect belt condition. If it stalls immediately after disconnecting the jump pack, consider a dead battery cell or severe cable resistance.
What if it cranks fast like there’s no resistance?
Fast, “whirring” cranking often suggests low compression across cylinders, which can happen with a jumped timing belt/chain or internal mechanical failure.
Next, perform a compression test or seek timing verification before any fuel or ignition part swapping.
This symptom is one of the strongest mechanical clues. Combine it with any recent loud snap, sudden stall, or history of overdue timing belt service. If you suspect timing, avoid further cranking to reduce damage risk on interference engines.
What if it only fails hot, then starts after cooling?
Hot-only failures commonly implicate heat-sensitive sensors, relays, or fuel vapor issues, because heat changes resistance and signal quality and can increase vapor formation in certain fuel system conditions.
Next, focus on crank/cam signal checks and relay/power feeds during the hot no-start window to capture the failure live.
Intermittent faults are best diagnosed by testing while the problem is happening. If the failure disappears after cooling, record scan data (RPM, coolant temp, throttle position) during the no-start and compare to a normal start. This prevents random replacement and helps you target the exact signal that drops out when hot.
Contextual Border: The main checklist above identifies the system that prevents starting. Below are extra micro-clues and decision shortcuts that speed diagnosis when the symptoms are intermittent or tied to a specific event.
Extra micro-clues that pinpoint the cause faster
Use these rare-but-useful patterns to shorten diagnosis, because some no-starts are event-triggered (after refueling, after repairs, or after sitting) and the trigger itself is the biggest clue.
Next, match your scenario to the closest pattern and run the suggested confirmation test before you buy parts.
After refueling, it cranks but won’t start—what does that suggest?
This pattern often suggests an EVAP purge/vent fault causing an overly rich start condition, because excess vapor or purge flow can flood the intake right after a fill-up.
Next, let the car sit briefly, try a wide-open-throttle clear-flood start (if applicable), and scan for EVAP-related codes once it runs.
Also consider the simple: a loose gas cap can trigger EVAP codes but usually won’t cause a true no-start on its own. The key here is timing: if the failure is tightly linked to refueling events, you’ve narrowed the suspect list significantly.
It started fine yesterday, then won’t start right after a repair—what’s the fastest check?
Right-after-repair no-starts often come from disconnected sensors, pinched wiring, or vacuum/intake boots left loose, because many engine systems fail instantly when a connector is not seated.
Next, do a connector sweep: MAF, throttle body, coil/injector connectors, ground straps, and any harnesses touched during the job.
This is where disciplined “last touched, first checked” logic beats advanced testing. A single unplugged crank sensor connector can create a total no-start. A loose intake tube after an air filter service can create massive unmetered air. If you maintain a site like Car Symp, this is a perfect place to remind readers to document each connector they disconnect—photos prevent hours of rework.
It cranks strongly but only tries to start with added fuel—what does that imply?
If it briefly catches with added fuel, it often implies inadequate fuel delivery or injector command issues, because ignition and compression are sufficient for a momentary combustion event.
Next, confirm fuel pressure under crank and check injector pulse rather than replacing ignition parts that are already proven functional.
Be cautious with any added-fuel method: fire risk is real, and some engines (especially direct injection) do not respond predictably. Use it only as a controlled diagnostic hint, not a routine practice.
How do you keep the repair bill realistic after you find the culprit?
Once you identify the failing category, compare parts-only vs shop totals and prioritize root causes, because replacing secondary symptoms (like fouled plugs after flooding) without fixing the trigger repeats the failure.
Next, write down your confirmed test results and share them with a shop; that documentation often reduces diagnostic time and helps you discuss Typical repair costs for common causes without paying for duplicated testing.
Also keep a short summary of your results: battery voltage during crank, spark present (yes/no), fuel pressure pattern, injector pulse (yes/no), and any codes. This is the language professionals use, and it makes estimates more accurate. If you want a fast explanation to readers, you can phrase it as: you ran Fuel vs spark vs compression quick tests, and the “failed step” is where the repair should focus.
