If your dashboard says “overheating” but the engine doesn’t feel hot (or an OBD scan tool shows normal coolant temperature), you’re dealing with an overheating reading vs actual temperature mismatch—and the fastest way to prevent real damage is to verify actual temperature first, then isolate whether the problem is the gauge circuit, the ECT sensor signal, or a real cooling-system event.
Next, you’ll learn the practical meaning of “actual engine temperature” and why different sources (gauge, warning light, scan data, IR thermometer) can disagree even when nothing is “wrong” mechanically.
Then, we’ll break down the most common causes—especially failures that look like overheating but are really Wiring and connector issues vs sensor failure, cluster/gauge smoothing, or a sensor that’s drifting out of range.
Introduce a new idea: once you follow a simple comparison workflow (gauge vs OBD live data vs physical verification), you can choose the correct fix with confidence instead of guessing and replacing parts.
Is the Engine Actually Overheating When the Gauge Says “Hot”?
No—an overheating reading vs actual temp mismatch often means the gauge/indicator is wrong, not the engine, for three common reasons: (1) the dash gauge is damped or miscalibrated, (2) the ECT signal is skewed by sensor drift or wiring resistance, or (3) the engine had a brief overheat spike that already ended.
To better understand the mismatch, start by proving whether coolant temperature is truly excessive right now using at least two independent checks.
What “real overheating” looks like (quick reality checks)
Real overheating usually comes with at least one of these:
- Coolant smell/steam, rising pressure, boiling in the reservoir (after shutdown), or visible leaks.
- Heater blowing cold at idle (possible air pocket / low coolant / flow issue).
- Engine power reduction, misfires, pinging, or a warning message that persists while driving.
More specifically, the most reliable “driver-level” confirmation is OBD live coolant temperature (if available) plus a physical symptom check. If OBD says ~190–230°F (88–110°C) under normal load and there are no boiling/pressure symptoms, the engine likely isn’t overheating—your reading is.

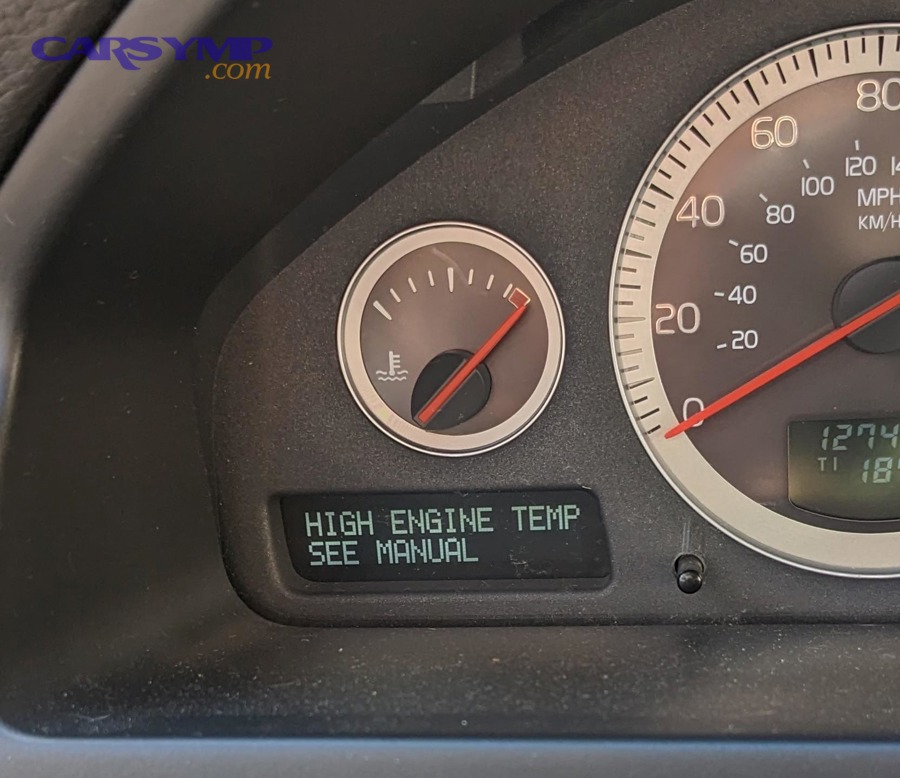

Why the gauge can say “hot” while temps are normal
Dash gauges are often not linear instruments; many are programmed to sit near “middle” for a wide temperature band, then jump when a threshold is crossed. A minor electrical or sensor shift can push the signal past that threshold even if the coolant is still within a safe operating range.
In addition, a momentary spike (like a fan not turning on for 30 seconds, then recovering) can trigger a warning even though the temperature returns to normal quickly—creating a mismatch between what the driver saw and what a later scan shows.
What Does “Actual Engine Temperature” Mean for Cooling-System Diagnosis?
Actual engine temperature is the true thermal state of the engine’s coolant and metal near the combustion chambers, typically represented by stabilized coolant temperature at key points (head/outlet) plus the engine’s ability to reject heat under load.
Next, treat “actual” temperature as a measured value—not a feeling—because engines can be dangerously hot before they smell or steam.
Which temperature is “actual”: coolant, head metal, or radiator outlet?
“Actual temperature” depends on where you’re measuring:
- Cylinder head / outlet coolant temperature (often where the ECT sensor sits): best proxy for what the engine is experiencing.
- Radiator outlet temperature: can look “cool” even while the head is too hot if flow is poor or thermostat is stuck.
- Surface readings (IR thermometer): useful, but can be misleading without emissivity control.
To illustrate, you can have a radiator hose that feels warm and a radiator outlet that seems “normal” while the head is spiking—especially with low coolant, trapped air, or a flow restriction.
Why IR thermometer checks can lie
Infrared readings depend heavily on surface emissivity. Shiny metal, wet surfaces, and mixed materials can produce large errors unless you standardize the surface (e.g., matte tape/paint spot) and measure consistently. Research on industrial thermography emphasizes emissivity as a primary error source and a key limitation when interpreting IR temperature in real environments.
Practical driver/DIY rule: use IR to compare relative differences (inlet vs outlet, housing vs hose) more than to declare an exact temperature—unless you’ve controlled the surface.
Which Faults Most Commonly Cause an Overheating Reading vs Actual Temp Mismatch?
There are 5 main causes of overheating reading vs actual temp mismatch: (1) ECT sensor drift/failure, (2) wiring/connector resistance or shorts, (3) instrument cluster/gauge fault, (4) thermostat/fan control logic issues that create brief spikes, and (5) ground/reference voltage problems shared by multiple sensors.
However, the fastest wins come from separating “signal problems” from “cooling problems.”
ECT sensor drift vs total failure (what each looks like)
An ECT sensor can fail in different ways:
- Drifted calibration: reads consistently high or low across conditions (common cause of mismatch).
- Intermittent dropout: sudden jumps, spikes, or implausible readings (often wiring/connector related).
- Open/short failure: can force the ECU into a default value and trigger warning lights.
This is why coolant temperature sensor replacement should be the end of a verification chain, not the first guess—because drift can be real, but so can harness issues that mimic drift.
Wiring and connector issues vs sensor failure (the #1 “looks like a bad sensor” trap)
Wiring and connector issues vs sensor failure is the core diagnostic fork:
- Corrosion in the connector pins adds resistance → the ECU “sees” the wrong temperature.
- A rubbed-through wire intermittently shorts to ground → sudden “hot” spikes.
- Poor ground/reference → multiple sensor readings become suspicious at the same time.
If your coolant temp reading glitches when you wiggle the harness near the sensor, you’re very likely dealing with wiring/connector problems rather than the sensor element itself.
Cluster/gauge smoothing, step gauges, and miscalibration
Even when the ECU data is correct, the dash display can be wrong due to:
- Failed stepper motors (older clusters).
- Cluster software damping that masks normal changes but overreacts near thresholds.
- Poor cluster ground causing the gauge to read high when electrical load changes (lights, blower, rear defrost).
Brief real spikes: fan control, air pockets, or thermostat “lazy opening”
Sometimes the engine truly spikes hot briefly, then recovers:
- Fan relay/module delay, fan not commanded on at the right threshold.
- Air pocket at the sensor location causes the sensor to read hot/erratic.
- Thermostat opens late under certain loads; the system catches up once flow increases.
A 30–60 second spike can create an “overheat moment” that isn’t obvious later—so capture data during the event if possible.
How Do You Diagnose Sensor vs Gauge vs Real Overheating Step-by-Step?
Use a 4-step comparison method—OBD live data, gauge behavior, physical/IR verification, and circuit checks—to identify the true source of the mismatch and avoid unnecessary parts replacement.
Specifically, you’re trying to answer one question: Is the ECU’s coolant temp plausible?
Step 1: Compare dashboard gauge to OBD live coolant temperature
- If OBD coolant temp is stable and normal while the gauge says hot → suspect cluster/gauge circuit.
- If OBD coolant temp is also high → treat it as a potential real overheat until proven otherwise.
- If OBD temp jumps or is implausible (e.g., sudden 60°F swings) → suspect sensor/wiring.
Tip: log data if your scan tool/app allows it—spikes matter.
Step 2: Validate with a second physical reference (hoses + IR in controlled way)
Check:
- Upper hose (engine to radiator) warms as thermostat opens.
- Lower hose (radiator outlet) should be cooler than upper when radiator is working.
- Heater output consistency (hot air suggests coolant flow).
Use IR carefully (matte tape spot) and compare inlet vs outlet rather than chasing a single number.
Step 3: Quick circuit sanity checks (without deep electronics)
- Inspect connector for green corrosion, coolant intrusion, or loose fit.
- Look for harness rub points near brackets, belts, and sharp edges.
- Check grounds if multiple sensors act weird together.
If unplugging the sensor forces a default reading and changes behavior predictably, the circuit may be reacting normally—meaning the input might be the issue.
Step 4: When to do deeper tests (resistance/voltage, service manual specs)
If you have a multimeter and specs:
- Verify reference voltage and ground at the connector.
- Measure sensor resistance vs temperature (cold vs warm) and compare to spec.
- Check for voltage drop across grounds under electrical load.
Evidence: Research from Silesian University of Technology’s Faculty of Transport and Aviation Engineering, Department of Road Transport, highlights how diagnostic decisions can be made from onboard data streams—and also how certain faults may not be flagged by basic OBD logic, requiring smarter interpretation of the data.
Could the Cooling System Still Be at Fault Even If OBD Temp Looks Normal?
Yes—cooling faults can still exist because (1) sensor placement can miss localized hot spots, (2) brief spikes can settle before you scan, and (3) airflow/pressure issues can cause load-dependent overheating that doesn’t show up at idle.
Besides, a mismatch diagnosis should still include a basic cooling-system health check, especially if you’ve seen steam, coolant loss, or repeated warnings.
Low coolant, trapped air, or poor bleeding after service
A partially low system can:
- Put the sensor in an air pocket → erratic readings.
- Reduce heat transfer → real overheating under load.
- Cause heater inconsistency and gurgling sounds.
If you recently had cooling work done, air bleeding issues are a top suspect.
Radiator cap pressure and boiling margin (why “no steam” doesn’t guarantee safe temps)
Cooling systems rely on pressure to raise boiling point; losing pressure reduces your safety margin and can allow boiling at lower temperatures. A commonly cited rule is that boiling point rises by about 3°F per psi of added pressure (and drops when pressure is lost).
So you can have a “normal-looking” temp reading but still experience localized boiling if pressure control is compromised.
Fan, airflow, and load-dependent overheating
Some faults only appear:
- At highway load (clogged radiator, restricted airflow).
- In traffic (fan not working, fan control fault).
- With A/C on (extra heat load).
If the mismatch only happens in one driving mode, treat it as a clue—not noise.
What Are the Correct Fixes Once You Identify the Root Cause?
The correct fix depends on what wins the comparison: gauge fault → cluster/circuit repair; ECT signal fault → wiring repair or sensor replacement; real overheat → cooling-system repair (flow, airflow, pressure, leaks).
More importantly, fixing the wrong layer wastes money and can leave a real overheating problem unresolved.
Fix path A: Dash gauge/cluster is wrong
Typical solutions:
- Repair cluster stepper motor / internal fault (common in some older vehicles).
- Repair gauge signal wire or shared ground.
- Verify instrument cluster connector seating and pin tension.
Confirm success by matching gauge behavior to OBD live data across warm-up and a short drive.
Fix path B: ECT signal is wrong (sensor or harness)
Start with the cheapest certainty:
- clean/repair connector pins, re-seat terminals
- repair damaged harness sections / heat-shrink + proper splices
- only then do coolant temperature sensor replacement
If replacement is needed, factor in ECT sensor replacement labor time: many sensors are quick (minutes) but some are buried under intake ducts, housings, or require coolant draining/bleeding—so the “labor time” depends heavily on location and access.
Fix path C: Real overheating confirmed
Address by category:
- Flow: thermostat stuck/slow, water pump, blockages, air pockets
- Heat rejection: radiator condition, airflow, fan operation
- Pressure/leaks: cap, hoses, reservoir, head gasket symptoms
If you confirm true overheating, stop “testing by driving” aggressively—overheating damage can escalate fast.
Evidence: Purdue University’s Boiling and Two-Phase Flow Laboratory (School of Mechanical Engineering) summarizes how nucleate boiling and critical heat flux define thermal limits in high heat-flux cooling scenarios—reinforcing why pressure, flow, and boiling margin matter when diagnosing overheating behavior.
What Edge Cases Make Temperature Readings Disagree Even When Nothing Is “Broken”?
Some mismatches are “normal” because the system is designed for stability and safety: damped gauges, fan strategy changes, sensor placement differences, and transient heat soak after shutdown can all create temporary disagreement.
In addition, knowing these edge cases prevents overreacting to a one-time needle movement.
Heat soak after shutdown: why temps rise when the engine is off
After you shut down, coolant stops circulating and under-hood heat migrates into the sensor area. It’s common to see a temporary rise in measured temperature even though the engine is no longer generating combustion heat.
“Dummy gauge” behavior: why many gauges sit at the middle forever
Many manufacturers intentionally compress the “normal” range so drivers don’t worry about small swings. The downside is that when the gauge finally moves, it can feel dramatic—and may not map cleanly to OBD numbers.
Sensor placement mismatch: head outlet vs radiator outlet vs fan switch
One vehicle may:
- Read ECT near the thermostat housing (hot side),
- Control fans from a different sensor,
- Display a processed value on the dash.
So you’re comparing apples (hot-side coolant) to oranges (processed display) unless you know the sensor locations.
Electrical load and ground offsets: the sneaky cause of false “hot” events
Turning on blower motor, headlights, or rear defrost can shift ground potentials in marginal circuits. If the “overheat” warning correlates with electrical load changes, revisit grounds and connector integrity before replacing cooling parts.
