Suspension issues that mimic brake vibration are common, especially when the car’s weight shifts forward and small amounts of play become big forces. The goal is to pinpoint whether the shake is coming from moving suspension/steering parts, tires/wheels, or the brake system itself—before you buy parts twice.
Beyond the obvious “warped rotor” suspicion, worn bushings, loose joints, tired dampers, and hub/bearing problems can create the same steering-wheel shimmy or body shake you’d swear is braking-related, even if the brakes are fine.
You’ll learn the telltale patterns, the most frequent suspension culprits, and practical tests that separate suspension movement from true brake judder—so your repair path matches the real root cause.
Tiếp theo, Giới thiệu ý mới: we’ll start with the quickest “yes/no” diagnostic logic, then drill down into component-level checks.
Suspension issues that mimic brake vibration; brake-like shake; steering wheel shimmy; front-end vibration; control arm bushing; ball joint; tie rod end; wheel bearing; hub assembly; strut; shock absorber; strut mount; alignment; tire cupping; brake judder; disc thickness variation (DTV); rotor runout; load transfer; compliance; meronymy: bushing is part of control arm; synonym: brake-like vibration.
Can suspension issues that mimic brake vibration happen even with good brakes?
Yes—suspension issues that mimic brake vibration can occur even when pads, calipers, and rotors are in good shape, because braking load transfer magnifies looseness and compliance in steering and suspension parts.
To begin, the key is recognizing that “braking time” vibration can be triggered by components that aren’t brakes at all—so the next checks focus on where the vibration is felt and when it starts.
When you press the brake pedal, the front tires carry more vertical load, and the suspension geometry shifts slightly (even on a healthy car). If a bushing is torn, a tie-rod end is loose, or a ball joint has play, that tiny geometry change becomes a steering shake, a seat/floor tremor, or a “front end wobble.”
This is why many drivers search for Vibration when braking causes and land on rotors first—because the symptom is time-linked to braking. But “time-linked” does not automatically mean “brake-caused.” Suspension movement can be “activated” by braking forces, even if the brakes are simply providing the trigger.
Practical clue: if the car also feels unsettled over bumps, wanders on the highway, or changes direction slightly when you lift and reapply the throttle, that points you toward chassis components rather than friction surfaces.
The most important concept is load transfer amplification: braking increases front axle loading, which increases bushing deflection, increases steering angle sensitivity, and increases feedback through the steering column and chassis.
The same driver might describe it as “shaking,” “pulsing,” “judder,” or “wobble.” Your job is to translate those words into a consistent diagnostic pattern.
According to the 2016 technical bulletin published via NHTSA, in May 2016, a vibration or shaking sensation may be evident while driving and may or may not occur during braking, with causes that can include interface and mounting factors that affect runout and vibration.
What are the signature patterns of suspension shake versus true brake judder?
There are three signature patterns: suspension/steering shake often changes with road inputs and steering angle, tire/wheel issues scale strongly with speed, while true brake judder most consistently rises with brake torque and typically peaks during deceleration.
After that, you can use “where you feel it” (hands vs seat) and “when it starts” (immediately vs after heat) to narrow the suspect list quickly.
Pattern A — Suspension/steering looseness: the vibration can appear at multiple speeds, may be worse on imperfect pavement, and can change if you slightly turn the wheel left vs right while lightly braking. A worn joint can “take a set” under load, then release, causing a cyclical shimmy.
Pattern B — Tire/wheel related: the steering wheel shake typically grows with speed, often starts around highway speeds, and may remain even when you coast (no braking). Braking can make it feel worse because weight transfer increases front tire loading and amplifies an imbalance or radial force variation.
Pattern C — Brake judder: the sensation is most tied to brake application level and deceleration; it can feel like a repeating surge. Many drivers specifically report brake pedal vibration when the hydraulic system is reacting to brake torque variation.
Use a simple “coast test” on a safe road: at the same speed where you feel the shake, coast in gear (no braking). If it’s still there, suspect tires/wheels or chassis. If it largely disappears until you apply brake torque, brakes move higher on the list—but you still must rule out suspension parts that only misbehave under forward weight transfer.
Heat behavior helps too. If the vibration is noticeably worse after repeated braking from highway speeds, heat-related brake phenomena become more likely. If it’s equally present cold and warm, chassis looseness, bearings, or tires become more likely.
According to SAE’s paper on the brake judder phenomenon (1992), brake judder is experienced as a large-amplitude vibration felt through the vehicle body and steering wheel during braking, illustrating that brake-origin vibrations can propagate through chassis pathways and resemble broader vehicle shake.
Below is a quick triage table that contains symptom patterns, likely sources, and the fastest confirmation checks to reduce guesswork.
| What you feel | Most likely bucket | Fast confirmation check |
|---|---|---|
| Shake grows with speed, present while coasting | Tire/wheel imbalance or tire wear pattern | Coast test + rotate tires front-to-rear (if safe/allowed) |
| Shimmy changes with small steering input while lightly braking | Steering/suspension looseness (tie rods, bushings, ball joints) | Jack-up play checks at 3&9 and 12&6 + bushing pry test |
| Pulsation mainly under braking, repeatable at specific decel | Brake torque variation (runout/DTV) or mounting interface | Rotor/hub inspection + torque pattern check + dial indicator |
| Humming + vibration that shifts when turning left vs right | Wheel bearing/hub | Load-sway test on road + bearing play/noise inspection |
Which steering and control-arm joints create brake-like vibration under load transfer?
There are four
Next, we’ll map each part to a distinct feel, plus a direct test that confirms movement instead of guessing.
1) Tie-rod ends: steering shake that “talks” through your hands
Loose tie-rod ends commonly create a steering wheel shimmy that changes with small steering corrections, because toe angle can fluctuate as the brakes load the front axle.
To begin, lightly brake at a steady speed and make tiny left-right steering inputs; if the shake’s intensity changes quickly, suspect steering linkage play.
Confirm at home: with the front end safely lifted, check for play at 3 and 9 o’clock on the tire; watch the tie-rod end and inner joint for any delay or clunk. Any visible looseness is a strong indicator.
2) Lower control arm bushings: compliance steer that feels like “rotor wobble”
Worn control arm bushings can let the wheel move fore-aft during braking, altering caster/toe momentarily and creating a braking-only shimmy that mimics rotor issues.
After that, pay attention to “on-off” behavior: a bushing problem often appears on initial brake application and may ease if you hold steady pressure.
Confirm at home: use a pry bar (carefully) to load the bushing and look for excessive separation, fluid leakage (on hydraulic bushings), or cracked rubber.
3) Ball joints: instability that can show up as shake, wander, or pull
Loose ball joints can create vibration and vague steering because the wheel’s camber and toe can shift under load, especially when braking transfers weight forward.
To begin, combine a 12 and 6 o’clock play check with a visual inspection of the boot and any rust dust that suggests internal wear.
Confirm at home: if you can see the stud move within the socket (not just the tire flexing), the joint is beyond “normal play.”
4) Sway bar links and bushings: rattle plus secondary shake
While sway links alone rarely cause strong brake-only pulsation, they can add clunks and amplify an existing vibration by letting the chassis oscillate more freely.
Next, if you hear a repetitive rattle over small bumps alongside braking shake, include sway components in your inspection.
According to an NHTSA-published bulletin dated February 2013, brake pedal pulsation and steering wheel shake during braking on certain vehicles involved installing new left and right front lower control arms alongside brake service actions—highlighting that control arm condition can be part of a braking-vibration complaint.
How can wheel bearings, hubs, and CV joints imitate a rotor problem?
Wheel bearings, hubs, and CV joints can imitate a rotor problem by introducing rotational roughness, looseness, or torque-reactive movement that becomes noticeable during deceleration—especially when the driveline and wheel load direction change.
After that, you’ll separate “bearing load noise” from “joint play” using a turn-load test and a hands-on inspection.

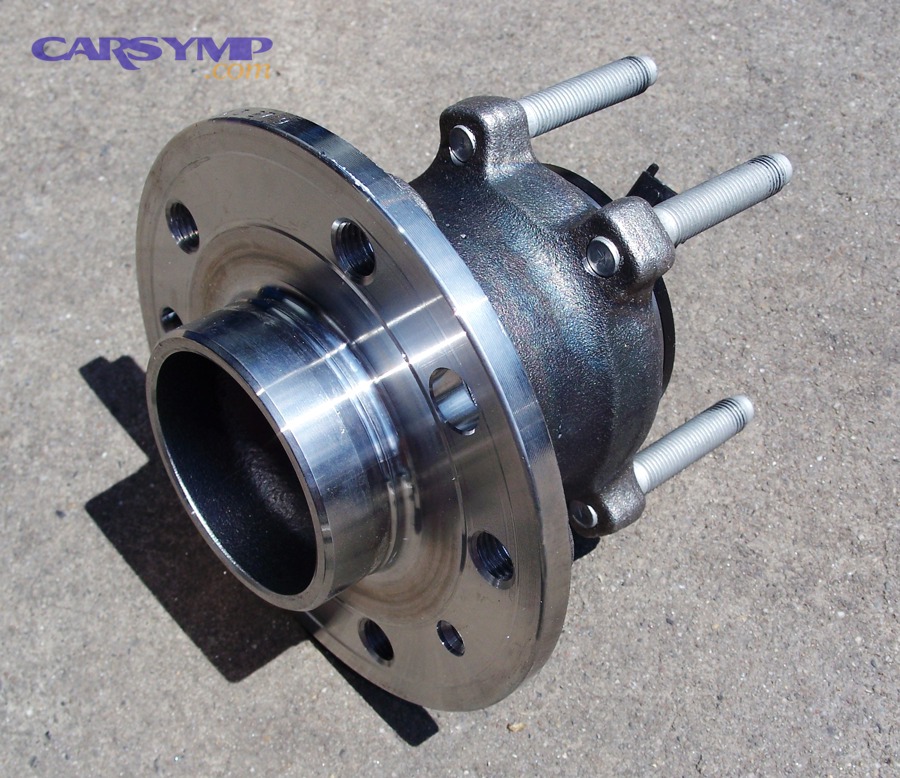

Wheel bearings and hub assemblies: vibration with a directional clue
A worn bearing often announces itself with a hum or growl that changes when you steer slightly left vs right, because the bearing load shifts from one side to the other. Under braking, the increased front load can make the vibration feel brake-related even if it’s not.
To begin, perform a safe “lane-change load test” at a steady speed (no hard braking): a bearing typically gets louder when loaded and quieter when unloaded.
In the driveway, check for play and roughness: rotate the wheel by hand and listen/feel for grinding; then check for looseness. Note that some hub bearings can be noisy without obvious play, so road behavior matters.
CV joints and axles: vibration tied to torque and angle
CV issues are more commonly linked to acceleration vibrations, but inner CV wear can also show up during decel/braking as the torque direction reverses and the joint’s worn path is reloaded.
Next, if the shake is stronger in a particular gear range, or after a recent axle replacement, include axles and joint angles in your suspect list.
According to SKF’s wheel hub bearing Q&A document, hub bearings can produce excessive vibration and noise and can also affect ABS operation, indicating that hub/bearing condition can create symptoms drivers may interpret as braking-related feedback.
Do struts, shocks, and mounts cause vibration mainly when slowing down?
Yes—worn struts/shocks and degraded mounts can cause vibration that feels worst while slowing down because reduced damping allows wheel hop and chassis oscillation during weight transfer, which can mimic a braking shake.
After that, you’ll connect damping wear to tire wear patterns and to the “bounce signature” you can test at home.
Why damping matters during braking: braking loads the front suspension and can excite oscillations. If the damper can’t control motion, the tire’s contact patch can alternately grip and release, creating a repeated vibration that feels like pulsing.
Mounts and top hats: a worn strut mount can add a knock or “spring wind-up” feel, sometimes accompanied by inconsistent steering return-to-center. It doesn’t always create a pure pulsation, but it can amplify other sources.
What to look for: oil leaks on struts/shocks, broken mounts, cracked rubber isolators, and uneven ride height. Combine this with tire inspection for cupping/scalloping—often a companion clue.
Driveway bounce test: it’s not perfect, but if the car continues bouncing after a firm push-down and release (more than 1–2 cycles), damping is likely weak. Pair it with tire wear evidence to make the case stronger.
According to Goodyear’s tire care guidance on tire cupping, cupping can be related to suspension issues and alignment, reinforcing that damping and chassis condition can lead to vibrations drivers may notice during everyday braking and deceleration.
How do tires, wheels, and alignment trick you during braking?
Tires, wheels, and alignment trick you during braking when a speed-dependent vibration is amplified by forward load transfer, making an imbalance, runout, or uneven wear feel like a brake problem during deceleration.
Next, you’ll connect each tire/wheel scenario to a specific “tell” so you can verify it before buying brake parts.
Imbalance: classic steering shake that climbs with speed. Braking doesn’t cause it, but braking makes you notice it because the chassis is already under dynamic load and your hands are steady on the wheel.
Radial force variation and out-of-round: can feel like a repeating hop that gets worse at certain speeds. Under braking, the loaded front tires may transmit stronger feedback to the steering wheel.
Cupping/scalloping: often linked to weak shocks/struts or looseness. The tire hits the road in a repeating pattern, and deceleration can make that “thrum” feel like brake pulsation.
Alignment/toe issues: can cause tire scrub and a “wander” feel. Under braking, a car with compliance steer (from bushings) plus incorrect toe can shake as the wheels fight each other.
Fast verification steps:
- Coast test: if it shakes while coasting at the same speed, tires/wheels rise to the top.
- Tire rotation (when safe): if the vibration moves from steering wheel to seat (or changes character), suspect tires/wheels.
- Visual tread scan: look for scallops, feathering, or sawtooth edges across tread blocks.
- Wheel face and bead seat check: bent wheels can be subtle; inside-lip bends are common.
According to Goodyear’s explanation of tire cupping, irregular tread wear with scallops or dips can be related to suspension condition and is a visible indicator that the vibration source may not be the brake rotor itself.
What step-by-step tests isolate suspension movement in your driveway?
A reliable isolation method is a seven-step sequence: confirm the pattern on-road, check tire/wheel basics, test steering play, test vertical play, load bushings, inspect hubs/bearings, and only then evaluate brake mounting/runout—because the order prevents false conclusions.
After that, each step gives you a “pass/fail” observation that narrows the culprit without replacing parts blindly.
- Road pattern note: write down speed range, whether it happens cold vs warm, and whether it changes with tiny steering inputs.
- Coast confirmation: reproduce at speed while coasting (safe road). If present, prioritize tires/wheels/bearings.
- 3 & 9 play check: look for tie-rod/steering rack movement.
- 12 & 6 play check: look for ball joint or bearing play (interpret carefully—some cars have normal minimal movement).
- Bushing load test: use controlled prying to look for separation, cracks, or abnormal motion in control arm bushings.
- Bearing roughness check: spin the wheel, listen for growl, and feel for grittiness.
- Brake interface sanity check: only now inspect mounting surfaces and torque pattern, because an uneven interface can imitate many symptoms.
This is where many DIYers get pulled into brake parts prematurely: a loose bushing can make the steering shake, and new rotors won’t stop it. Conversely, ignoring the brake-to-hub interface can also lead to repeat issues even after you replace suspension parts. The sequence keeps you honest.
Here’s a short video that helps visualize front-end play checks and how vibration can travel through steering components:
According to the Brembo guide to brake disc assembly and measurement, measuring disc runout is a vitally important operation because excessive runout can lead to abnormal wear and braking vibrations after some use, reinforcing why interface checks belong late—but still belong—in a complete diagnostic workflow.
When should you still check brake components to avoid repeat comebacks?
You should still check brake components when the vibration is tightly tied to brake pressure, repeats predictably during deceleration, or worsens after heat—because brake torque variation can masquerade as a chassis shake through the suspension.
Next, you’ll use measurement and decision rules to avoid “fixing” the wrong system and creating a comeback.
Even in a suspension-focused diagnosis, brakes remain part of the differential because brake forces travel through knuckles, control arms, and subframes. A brake-origin vibration can feel like a suspension shake, and a suspension-origin shake can feel like a brake pulsation. The difference is the pattern and the confirmation tests.
Two braking-related terms matter for accurate diagnosis:
- Runout: the rotor’s lateral wobble relative to the hub.
- DTV (disc thickness variation): uneven rotor thickness around its circumference, which can create brake torque variation.
If you need How to measure rotor runout accurately, use a dial indicator on the rotor friction surface, ensure the hub face is clean, and rotate the rotor while recording the highest and lowest readings. Small interface errors (rust, debris, uneven torque) can create misleading readings, so cleanliness and procedure matter.
When the measurement indicates a brake-origin issue, the decision often becomes Fix options: resurface vs replace rotors. Resurfacing can correct surface and minor variation when the rotor remains above minimum thickness and within manufacturer limits, while replacement is preferable when thickness is near spec limit, heat checking is present, or the rotor can’t be machined true.
Also, be careful with “new rotors, same shake.” If the hub face isn’t cleaned, or lug torque is uneven, you can induce runout during installation—creating the same symptom you tried to remove.
According to an NHTSA-published brake noise/judder/pedal feel diagnosis document (January 2022), brake judder is caused by rotor thickness variation and/or rotor runout, and the motion can be transferred through caliper pistons and felt as pedal pulsation and sometimes steering wheel oscillation.
Additionally, SAE’s runout/DTV measurement standard (Dec 2024) highlights that lateral run-out and disc thickness variation are critical features influencing braking comfort, underscoring why measurement-based decisions reduce misdiagnosis.
Tóm lại: if the vibration is brake-pressure-dependent and repeatable, check brakes. If it’s speed-dependent, steering-angle-dependent, or present while coasting, prioritize tires/wheels/suspension. When in doubt, follow the sequence and confirm movement before replacing parts.
Contextual Border: From here, we shift from the “common culprits” to advanced lookalikes and prevention details that often cause repeat vibrations even after otherwise correct repairs.
Advanced lookalikes and prevention tips for brake-like vibration
These advanced cases are less obvious but highly repeatable: they involve mounting surfaces, wheel fitment, and system behaviors that can create a brake-like feel even when primary suspension components check out.
Next, you’ll see how small interface errors and setup choices can create big symptoms—and how to prevent them.
Wheel torque sequence and hub cleanliness
Uneven lug torque and dirty hub-to-rotor mating faces can introduce distortion or runout, which then feels like a chassis shake. This can also mask a mild suspension issue by stacking vibrations together.
Cụ thể, clean the hub face, remove rust ridges, and torque lugs in a star pattern to the correct spec using a calibrated wrench.
According to the NHTSA bulletin (May 2016), excessive disc runout leading to thickness variation can be associated with hub-to-disc interface cleanliness and wheel mounting face conditions—showing how installation details can create or worsen vibration symptoms.
Aftermarket wheels, hub-centric rings, and offset changes
Aftermarket wheels that rely on lug-centric mounting, missing hub-centric rings, or large offset changes can increase sensitivity to imbalance and mounting variation, making decel feel like a brake problem.
Để minh họa, if vibration appeared right after wheel changes, verify hub bore fitment, ring integrity, and wheel seating surfaces before touching brakes or suspension.
ABS/ESC behaviors that can feel like vibration
Some drivers interpret ABS pulsing, traction/stability interventions, or wheel speed sensor irregularities as “brake shake,” especially on rough surfaces or during emergency stops.
Quan trọng hơn, if you also see ABS/traction lights or the sensation only occurs on slippery/uneven pavement, scan for codes and inspect wheel speed sensor tone rings and hub/bearing condition.
According to SKF’s hub bearing Q&A document, wheel hub bearings can affect ABS function and can produce vibration and noise, indicating that hub-related issues can interact with braking control systems and alter perceived pedal/vehicle feedback.
FAQ
Q: Why did new brakes not fix my braking vibration?
A: Because suspension issues that mimic brake vibration (bushings, tie rods, ball joints, bearings, damping) can remain unchanged, and braking merely triggers the load transfer that exposes the looseness.
Q: Can a bad control arm bushing feel like rotor warping?
A: Yes. A bushing can allow fore-aft wheel movement during braking, creating compliance steer and steering wheel shake that resembles a rotor-related judder.
Q: Is it always safe to keep driving with brake-like vibration?
A: Not always. Loose steering/suspension joints and failing bearings are safety concerns; if you have clunks, wandering, or visible play, inspect promptly and avoid high-speed braking until repaired.
Q: What’s the fastest “one observation” clue?
A: If the vibration is present while coasting at the same speed, it’s unlikely to be purely brake-origin—prioritize tires/wheels/bearings/suspension first, then confirm with play checks.
