If you want a reliable home network, the fastest win is to verify the correct RJ45 Ethernet cable wire order and terminate both ends consistently as T568A–T568A or T568B–T568B. When you follow the right pin order, keep pairs intact, and seat conductors correctly, your cable is far more likely to link at full speed and stay stable.
Next, you also need to decide between T568A and T568B in a practical way: pick one standard for the entire job and stick with it end-to-end. That one decision prevents the “it works sometimes” behavior that shows up when a patch cord, wall jack, and patch panel don’t match.
Moreover, the biggest failures don’t come from “mystery networking”—they come from common termination mistakes like split pairs, too much untwist, the jacket not captured by the strain relief, or a plug that doesn’t match your cable type. These are predictable, fixable errors once you know what to look for.
Introduce a new idea: after you wire and crimp, you still need to test and diagnose the result so you can confirm the wiremap, spot miswires, and fix problems before they waste your time inside walls or behind furniture.
What is the correct RJ45 Ethernet wire order for T568A and T568B?
The correct RJ45 Ethernet wire order is a standardized pin-to-color mapping (T568A or T568B) that assigns each conductor to pins 1–8 on an RJ45 plug, ensuring the twisted pairs stay correctly paired for stable, high-speed data.
To better understand how people accidentally “mirror” the order, you first need one consistent viewpoint: hold the RJ45 plug with the gold pins facing you and the plastic clip pointing away (down/back). Then you read pins from left to right as 1 through 8.
What is the exact T568B pinout (pins 1–8) and how do you verify it before crimping?
The exact T568B pinout from pin 1 to pin 8 is: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown, and you verify it by aligning the conductors in that sequence and visually confirming each wire reaches the front of the plug before crimping.
Specifically, T568B is the most common choice for many DIY patch cords and small networks, but it only works when both ends match the same standard. The fastest pre-crimp verification is a “three-check routine” that catches most mistakes while the connector is still reusable.

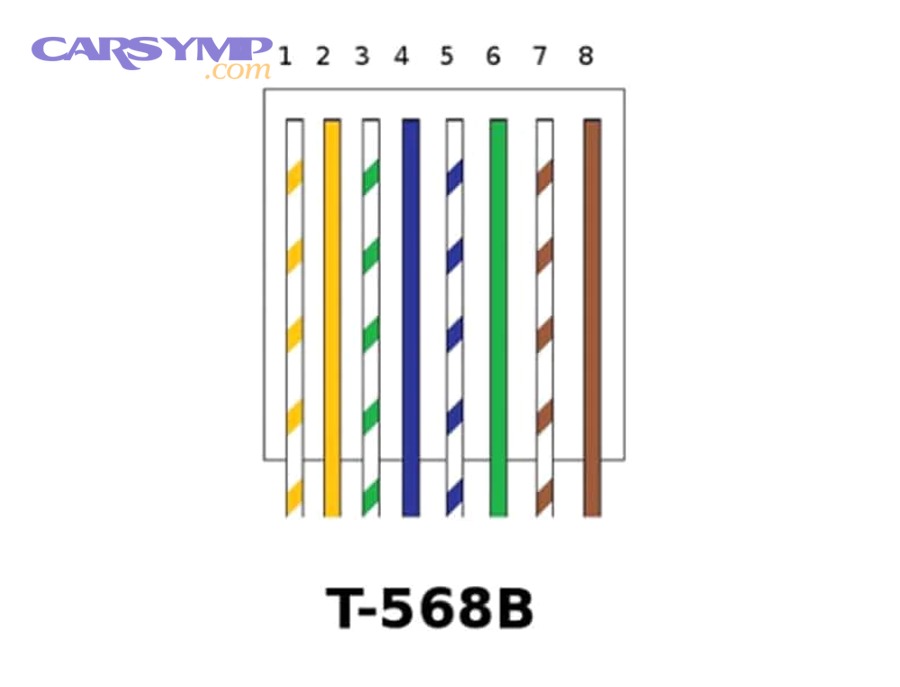

T568B wire order (pins 1–8):
- 1: White/Orange
- 2: Orange
- 3: White/Green
- 4: Blue
- 5: White/Blue
- 6: Green
- 7: White/Brown
- 8: Brown
How to verify before crimping (fast, practical):
- Order check: read left-to-right 1–8 and say the colors out loud (it slows your hands just enough to prevent swapping).
- Reach check: look through the clear plug and confirm every conductor tip touches the front end of the plug (no “short” wire sitting behind).
- Jacket check: confirm the cable jacket (not just loose conductors) sits under the strain relief so pulling the cable doesn’t pull the wires off the pins.
Then, if anything looks off, pull the wires back out, re-flatten, re-trim evenly, and re-insert—fixing an error before crimping is always faster than diagnosing after installation.
What is the exact T568A pinout (pins 1–8) and when is it used?
The exact T568A pinout from pin 1 to pin 8 is: white/green, green, white/orange, blue, white/blue, orange, white/brown, brown, and it is used when you want consistency with T568A-terminated jacks, structured cabling conventions, or installations where T568A is the default standard.
More specifically, T568A and T568B perform the same when terminated correctly; the difference is simply which pair occupies pins 1–2 and 3–6. That’s why “match both ends” is the real rule.
T568A wire order (pins 1–8):
- 1: White/Green
- 2: Green
- 3: White/Orange
- 4: Blue
- 5: White/Blue
- 6: Orange
- 7: White/Brown
- 8: Brown
In addition, T568A is commonly seen in wall jacks and keystone punch-down contexts, so choosing T568A for your whole home can simplify “future you” troubleshooting when you open a wall plate and want everything to match your labeling.
Does the wire order change depending on connector orientation (clip up vs clip down)?
Yes, the wire order appears to change when you flip the connector because you are physically reversing the left-to-right view of pins 1–8, and that flip is the most common reason DIY terminations end up mirrored or reversed even when the colors are “right” in someone’s memory.
However, the standard itself never changes: pins are still 1–8, and the correct color still belongs to the correct pin. The only thing that changes is your viewpoint.
A simple viewpoint rule that prevents mirrored wiring:
- Standard view: hold the plug with gold pins facing you and the clip pointing away.
- Read pins: left-to-right is 1 through 8.
- Don’t “flip and guess”: if you turn it over, stop and reset to the standard view before you name colors.
To sum up, when you always verify in the same physical orientation, your wire order becomes repeatable and you stop “accidentally inventing” a new pinout every time you pick up the plug.
Should you use T568A or T568B for home networking—and does it matter?
T568A wins for consistency with many structured cabling conventions, T568B is best when you are matching existing patch cords or legacy site standards, and the optimal choice for home networking is whichever standard you can apply consistently to every termination end-to-end.
Meanwhile, the question “does it matter?” only has one practical answer: it matters if you mix standards across the same link, because mixing creates a different wiring relationship that can behave like a crossover and break expectations.
Is T568B “better” than T568A for speed or stability?
No, T568B is not better than T568A for speed or stability because both standards support the same Ethernet performance when terminated correctly, and stability depends far more on pair integrity, contact quality, and consistent termination than on which standard you chose.
Especially in a DIY setting, “better” means “less error-prone,” and that usually comes from choosing the standard that matches your environment—like the existing jacks in your home or the wiring scheme you already labeled—so you don’t accidentally mix A and B on opposite ends.
Three real reasons performance drops (and none are “A vs B”):
- Pair damage: untwisting too far or splitting pairs raises crosstalk and errors.
- Bad contact: conductors not fully seated or poorly crimped pins create intermittent links.
- Inconsistency: one end T568A and the other end T568B produces an unintended wiring relationship.
Thus, your best performance strategy is to standardize your terminations and focus your attention on the physical quality of each connection.
When does using different standards create a crossover cable, and do you still need crossover today?
T568A on one end and T568B on the other creates a crossover-style relationship, and most home networks do not need crossover cables today because most modern Ethernet ports support automatic MDI/MDI-X to adapt transmit and receive pairs automatically.
However, “not usually needed” is not the same as “never relevant,” and crossover knowledge still helps you diagnose confusing behavior—like two devices that refuse to link, or a tool that reports an unexpected wiremap when you thought you made a straight-through cable.
Practical crossover insight for DIY installers:
- Straight-through: A–A or B–B (most common for patch cables).
- Crossover: A–B (historically used for like-to-like device connections).
- Modern reality: most switches, routers, and NICs auto-adjust, but a bad termination can still prevent negotiation.
In short, you don’t need to build crossover cables for normal home work, but understanding them helps you spot when your “mistake” accidentally created one.
What’s the easiest rule to avoid mixing standards across jacks, patch panels, and plugs?
The easiest rule to avoid mixing standards is to pick one scheme (T568A or T568B) for your entire home network and label it everywhere—on patch panel ports, keystone jacks, and your DIY patch cords—so every link remains consistent.
Besides labeling, a tiny process change also eliminates errors: always terminate jacks first (where you can visually follow the color code), then build patch cords using the same standard and verify with a tester.
A simple “consistency workflow” for home installs:
- Choose T568A or T568B once.
- Write it on a label inside your network panel.
- Terminate all keystone jacks/patch panels to that standard.
- Terminate all RJ45 plugs to the same standard.
- Test every link and keep a small log (port → room → standard).
More importantly, consistency turns troubleshooting from guessing into confirming, which is exactly what a DIY installer needs when a cable run disappears into a wall.
What are the most common RJ45 termination mistakes and how do you avoid them?
There are 7 main types of RJ45 termination mistakes—wrong pin order, mirrored orientation, split pairs, excessive untwist, improper strip length, incomplete conductor seating, and mismatched plug-to-cable type—based on whether the error breaks the wiremap, the pair geometry, or the physical contact.
To illustrate why these mistakes feel “random,” notice that Ethernet can still link even when quality is poor; the cable may pass basic continuity but fail at gigabit speeds or under load, which makes the mistake look like a device problem instead of a termination problem.
Common mistakes (and the one-line fix):
- Wrong order: re-check pins 1–8 in the standard orientation before crimping.
- Mirrored view: always verify with pins facing you and clip away.
- Split pairs: keep true pairs together; don’t “arrange by color memory.”
- Too much untwist: untwist only what you need to seat wires (keep twists close).
- Bad strip length: ensure jacket sits under strain relief; don’t expose too much conductor.
- Not fully seated: push conductors to the plug front; trim evenly first.
- Wrong plug type: match connector to solid vs stranded and Cat rating.
Is “split pair” wiring a common mistake even when the colors look right?
Yes, split pair wiring is a common mistake even when the colors look right because Ethernet performance depends on true twisted pairs carrying balanced signals, and a cable can appear “ordered” by color while still pairing the wrong conductors together.
For example, someone may place white/green and green in the correct general area but accidentally swap the positions of conductors so that the electrical pair relationship is broken. That can still pass a simple continuity test while producing high crosstalk and unstable throughput.
How split pairs typically happen:
- You arrange wires to “match a picture” but you separate the original pairs too early.
- You flatten all eight conductors and then re-group them incorrectly while trimming.
- You copy a color order but ignore the fact that orange and green pairs swap between A and B.
How to avoid split pairs (repeatable method):
- Keep each twisted pair together until the last possible moment.
- Only untwist enough to lay the last 1–2 cm flat for insertion.
- After flattening, re-check by naming each adjacent pair position (1–2, 3–6, 4–5, 7–8) against your chosen standard.
According to a study by the University of Twente from its electrical engineering research community, in 2018, changing twist rate conditions in twisted wire pairs was associated with roughly a 25 dB decrease in average crosstalk in modeled scenarios, underscoring how strongly pair geometry influences interference behavior.
How much should you untwist the pairs near the connector to avoid performance loss?
You should untwist the pairs as little as possible—only enough to seat and align the conductors—because the closer the twist remains to the termination point, the more the cable preserves its crosstalk resistance and signal balance.
Specifically, the twist is not cosmetic; it is the physical structure that cancels noise and reduces coupling between pairs. When you untwist too far, you create a short “unbalanced antenna-like” segment right where the connector also introduces discontinuities.
Practical guidance for DIY installers:
- Untwist only what you need: keep twists tight up to the back of the plug.
- Flatten gently: straighten conductors without over-stretching or nicking them.
- Don’t separate pairs early: manage wires by pairs first, then final order.
More importantly, if you’re consistently failing to seat conductors unless you untwist a lot, the issue is usually your trimming technique, plug choice (Cat6 needs more room), or the tool—not the cable “needing” more untwist.
What cable strip length and conductor seating depth prevent intermittent connections?
The strip length and seating depth that prevent intermittent connections are the ones that place all conductor tips fully against the plug front while also capturing the outer jacket under the strain relief, so tugging the cable cannot pull conductors off the pins.
Then, a stable termination becomes a mechanical system: the jacket provides strain relief, the conductors provide electrical contact, and the crimp locks both in place.
What “good seating” looks like through a clear plug:
- All copper conductor tips touch the front of the plug (no gaps).
- Conductors are evenly trimmed, not stair-stepped randomly.
- The cable jacket sits inside the plug body and is clamped by the strain tab.
- No insulation is trapped under the metal contacts where bare conductor should be.
Why intermittent problems happen:
- One conductor is 1–2 mm short and does not get pierced by the contact blade.
- The jacket is outside the plug so any pull transfers force to the conductors.
- The conductor was nicked during stripping and breaks later under bending.
In addition, treat the termination as a “finish line” moment: if you see one short conductor, redo it immediately rather than hoping a slightly weak contact will hold over months of plugging, bending, and temperature changes.
Which RJ45 plug type should you use for solid vs stranded cable?
There are 2 main types of RJ45 plug contact designs—those optimized for solid conductors and those optimized for stranded conductors—based on how the contact blades bite into copper, and choosing the wrong type is a common cause of flaky links.
However, DIY installers often miss this because the plugs look identical from the outside. The difference shows up in how the metal teeth are shaped and where they pierce the conductor.
How to choose correctly:
- Solid conductor cable (often bulk cable in walls): use plugs rated for solid conductors, typically with contact blades designed to pierce a single solid core.
- Stranded conductor cable (common patch cable): use plugs rated for stranded, often with contacts designed to capture multiple strands reliably.
- Cat6 vs Cat5e fit: choose a plug rated for your cable category and conductor diameter so seating is consistent.
Especially if you’re building short patch cords, stranded cable with stranded-rated plugs is usually easier to crimp reliably; for permanent runs, consider terminating to a keystone jack instead of a plug (covered later) to avoid strain and mismatch issues.
How do you crimp an RJ45 plug correctly (step-by-step) so the wire order stays intact?
Crimp an RJ45 plug correctly by using a 7-step method—prepare, strip, pair-manage, align to the chosen standard, trim evenly, insert and verify, then crimp and strain-check—so the wire order stays intact and each conductor makes full contact.
Below is a practical process that prioritizes “verification before compression,” because once you crimp, mistakes become harder and more expensive to fix.
Step-by-step crimping method (keeps order stable):
- Choose your standard: decide T568A or T568B for this cable (and match both ends).
- Strip the jacket: remove only enough outer jacket to work comfortably while keeping pair twists close to the plug.
- Keep pairs together: manage wires in pairs first; do not fully separate all eight early.
- Align in order: flatten into the exact 1–8 sequence for your standard.
- Trim evenly: cut the ends square so all conductors reach the plug front equally.
- Insert and verify: push wires to the front; confirm order and jacket capture through the clear plug.
- Crimp and strain-check: crimp firmly; tug lightly to confirm the jacket is held and nothing slides.
Next, treat the crimp as a quality lock: if the jacket isn’t captured or a conductor is short, re-terminate right away rather than “testing your luck” with a cable that will fail at the worst time.
What is the easiest step-by-step method to keep wires aligned before inserting them into the plug?
The easiest method to keep wires aligned is to flatten the conductors into final order while they are still partially held by the pair twists, then pinch them firmly between thumb and forefinger, trim square in one cut, and insert immediately before the alignment can drift.
Specifically, wire drift happens when you spend too long rearranging after trimming or when your grip relaxes and the conductors “spring” back into curved shapes. The solution is a short, repeatable sequence you can do the same way every time.
A simple alignment routine that prevents shifting:
- Lay pairs out in your chosen order while twists still “anchor” each pair near the jacket.
- Flatten and straighten the last section gently (don’t over-bend).
- Pinch the stack firmly and slide your fingers toward the tips to keep them even.
- Trim once, square.
- Insert immediately and verify through the plug.
To illustrate why this matters, most first-time failures happen in the final 10 seconds: the wire order was correct in your hand, but one conductor swapped places as you inserted, and you didn’t catch it through the clear plastic.
Should you use pass-through RJ45 connectors to reduce mistakes?
Yes, pass-through RJ45 connectors can reduce mistakes because they let you push conductors fully through the plug and visually confirm order before crimping, but they still require the right tool, a clean flush cut, and proper jacket capture to avoid unreliable terminations.
However, pass-through plugs are not magic; they simply move the error point from “did the wires reach the front?” to “did I cut them flush and crimp correctly?”
Three reasons pass-through can help:
- Better visibility: you can see every conductor in order with less guessing.
- Full seating assurance: the conductors must reach the front because they exit the tip.
- Faster learning curve: beginners spot order mistakes earlier.
Three reasons pass-through can still fail:
- Non-flush cuts: protruding copper can short or corrode, especially in dusty areas.
- Tool mismatch: some crimpers don’t cut cleanly or don’t match the connector design.
- Jacket not captured: you can still end up with weak strain relief if strip length is wrong.
More importantly, whether you use pass-through or standard plugs, your best “mistake reducer” is the habit of verifying order and seating before crimping.
How can you test and confirm the cable is wired correctly and diagnose failures?
You can confirm an Ethernet cable is wired correctly by running a wiremap test (pins 1–8), checking for opens/shorts/miswires, and then validating real-world performance by confirming link speed and stability under load, which together diagnose most termination failures quickly.
Then, testing becomes your final proof: it tells you whether you truly built a straight-through cable, whether any conductor is intermittent, and whether a “looks fine” termination is actually good enough for gigabit.
What does a cable tester show for reversed pairs, open wires, shorts, and miswired pins?
A cable tester shows reversed pairs, opens, shorts, and miswired pins by displaying a wiremap that compares each pin on one end to its corresponding pin on the other end, letting you pinpoint the exact conductor that is wrong or not making contact.
Specifically, you should interpret results as a decision tree: if the tester shows a consistent wrong map, you likely mis-ordered wires; if it shows intermittent changes, you likely have poor contact or strain relief.
Common tester outcomes and what they mean:
- Open: one pin doesn’t connect end-to-end (often a short conductor not pierced by the contact).
- Short: two pins connect together (often copper protrusion or crushed conductors).
- Miswire: pin 3 shows up on pin 6, etc. (wire order mistake or mirrored orientation).
- Reversal: a pair swapped polarity (less common for DIY, but can occur with confusion in ordering).
- Split pair (advanced testers): continuity passes but pairing is wrong (performance problems at speed).
In addition, if your tester cannot detect split pairs, you can still infer them: a cable that passes continuity but negotiates down to 100 Mbps or drops packets under load is a strong candidate for split pair or excessive untwist.
If the cable links at 100 Mbps instead of 1 Gbps, is the wire order usually wrong?
Yes, a cable that links at 100 Mbps instead of 1 Gbps is often affected by a wire order or termination problem because gigabit Ethernet typically requires all four pairs to be correctly connected and stable, while 100 Mbps can operate on fewer pairs under some conditions.
However, the “usually” part matters: the root cause could be an open conductor, a poor crimp on one pair, a split pair that creates too much noise for gigabit, or a device configuration issue. The fastest fix is to test, re-terminate, and re-test.
Three practical reasons 1 Gbps fails but 100 Mbps links:
- One pair is open: gigabit fails because not all required conductors are usable.
- Poor contact under load: the link drops or negotiates down when errors rise.
- Split pair/excessive untwist: crosstalk becomes too high for stable gigabit.
According to a study by the University of Twente from its engineering research environment, in 2018, modeled scenarios showed average crosstalk could decrease by roughly 25 dB when twist rate conditions changed, which aligns with the real-world observation that preserving pair geometry supports higher-speed stability.
What quick troubleshooting checklist fixes most first-time crimp failures?
The quickest troubleshooting checklist fixes most first-time crimp failures by re-checking (1) correct pin order in a standard orientation, (2) full conductor seating to the plug front, and (3) jacket capture under strain relief, because those three issues cause the majority of opens, miswires, and intermittent links.
Below is a compact “redo-ready” checklist that turns frustration into a repeatable diagnostic routine.
Quick checklist (in order):
- Reset viewpoint: pins facing you, clip away; read left-to-right 1–8.
- Confirm standard: both ends are A–A or B–B (not mixed accidentally).
- Verify order: say colors out loud and match to your chosen standard.
- Check reach: all conductors touch the plug front; no short wires.
- Check jacket: jacket is inside the plug and clamped; conductors aren’t taking strain.
- Inspect copper: no exposed copper protruding past the plug tip (short risk).
- Re-terminate: if any doubt, cut off the plug and redo—most “maybe” terminations become “definitely bad” later.
Besides the checklist, remember one safety habit that mirrors a jump start guide: you don’t “hope” the connection is good—you verify it before you put it into service. That mindset also reduces the Spark and safety hazards to avoid when working around powered network gear and PoE injectors, because you stop plugging/unplugging blindly while troubleshooting.
What special cases affect RJ45 termination quality beyond wire order?
There are 4 special-case factors beyond wire order—Cat6 physical structure, shielding/grounding, keystone-vs-plug termination choice, and PoE power/heat behavior—based on whether the challenge is mechanical fit, electromagnetic noise, long-term strain, or current-related heating.
More importantly, these cases matter because they can make a correct wire order behave poorly in real installations, which is why they belong after the contextual border: they expand your semantic coverage beyond “order and mistakes” into “reliability in the field.”
Should you terminate Cat6 differently than Cat5e (separator spline, thicker conductors, fit issues)?
Yes, you should terminate Cat6 more carefully than Cat5e because Cat6 often has thicker conductors and may include a separator spline that affects how neatly you can align and seat wires, which increases the risk of short conductors and poor strain relief if you use the wrong plug.
Specifically, Cat6 success comes from matching components: Cat6-rated plugs that fit the conductor diameter, trimming cleanly, and keeping pair twists close even when the cable feels stiffer.
Cat6-specific termination tips:
- Use Cat6-rated RJ45 plugs sized for your conductor gauge and jacket thickness.
- Manage the separator/spline: trim it back neatly without damaging conductors.
- Expect more stiffness: use a firm, controlled insertion so wires don’t stop short.
- Re-check seating through the plug because Cat6 mis-seating is common for beginners.
To illustrate the difference, Cat5e often “forgives” small sloppiness, while Cat6 tends to fail in subtle ways (like one conductor not reaching the front) because the materials are less flexible.
Does shielded Ethernet (STP/FTP) change termination steps and grounding rules?
Yes, shielded Ethernet changes termination steps and grounding rules because the shield must be bonded correctly to connectors and the grounding approach must be consistent, or shielding can become ineffective or even introduce noise issues compared to unshielded cable.
However, shielding is not automatically “better” for a home network; it is the antonym of “simple” because it adds bonding decisions that most DIY installers don’t need unless they are in high-noise environments or have a specific requirement.
Shielded vs unshielded (practical reality):
- UTP (unshielded): simpler, common for homes, fewer termination variables.
- STP/FTP (shielded): can help in noisy environments, but requires correct shield termination and grounding consistency.
- Connector match: shielded cable needs shielded-rated connectors and proper bonding contact.
Thus, if you choose shielded cable, treat grounding as part of the system design, not an afterthought, and confirm your connectors actually bond the shield as intended.
Is it better to use a keystone jack instead of crimping a plug for permanent runs?
A keystone jack wins for permanent runs inside walls, crimping a plug is best for flexible patch cords, and the optimal approach for a DIY home network is to terminate in-wall cable to keystone jacks or a patch panel and use factory-made or carefully made patch cords for device connections.
On the other hand, crimping plugs directly onto in-wall solid cable creates strain and bending near the connector, and that mechanical stress makes intermittent faults more likely over time even when the wire order is correct.
Why keystone jacks are usually better for permanent runs:
- They are designed for solid cable and long-term stability.
- They reduce cable movement at the termination point.
- They simplify labeling and standardization across a home.
- They make troubleshooting easier because you can swap patch cords without re-terminating in-wall cable.
More importantly, jacks turn your network into a modular system: when something fails, you replace the small, accessible piece first instead of cutting into a long run.
Can poor termination cause PoE problems even if data seems “fine”?
Yes, poor termination can cause PoE problems even if data seems fine because PoE adds current flow through the contacts, and higher contact resistance from a weak crimp or poor seating can create heat, voltage drop, and intermittent power events.
Especially with PoE devices like cameras and access points, power symptoms can look like “random reboots” or “nightly dropouts,” which people misdiagnose as Wi-Fi issues instead of a termination quality issue.
PoE-related warning signs tied to termination quality:
- Device reboots when the cable is moved slightly.
- Power works, but the device drops under load (IR LEDs on cameras, higher draw modes).
- Connector feels warm or shows discoloration after long operation (a serious red flag).
According to a study by researchers at the University of Twente from its engineering research setting, and consistent with industry connector analyses, changes in physical and electrical conditions in twisted-pair systems can strongly affect interference and performance; in practice, PoE makes contact quality even more important because heat and resistance effects compound over time.
Finally, a practical analogy helps many DIY installers: after you “power up” a PoE run, treat it like the question “How long to idle after jump starting” in automotive work—don’t assume everything is fine immediately. You should monitor the connection for a short period (link stability, device uptime, and any heat at the plug) before declaring the job done.
Evidence (if any): According to a study by the University of Twente from its engineering research community, in 2018, modeled scenarios indicated the average crosstalk could decrease by roughly 25 dB when twist rate conditions changed, reinforcing the importance of preserving twisted-pair geometry near terminations.
