Understanding pan-drop vs full teardown access matters because the two repair paths solve very different transmission problems. A pan drop usually gives limited, in-vehicle access to the transmission pan area, the filter, and in many designs part or all of the valve body, while a full teardown goes much deeper and is used when the fault sits beyond that service window or when wider internal damage is likely.
That difference becomes practical as soon as a vehicle shows hard shifting, delayed shifts, limp mode, or other Solenoid failure symptoms. Some vehicles allow a straightforward transmission solenoid replacement after fluid drain, pan removal, and filter removal, but others require the valve body to come out or even require more extensive disassembly because the solenoid pack or control assembly is integrated deeper into the unit.
Cost, labor, and risk also separate these two approaches. A pan-drop repair is usually cheaper because it uses less fluid, less labor, and fewer disturbed parts, while a deeper overhaul costs more but gives far better visibility when the transmission may have clutch, valve body, or hydraulic damage beyond the solenoid itself. (blog.amsoil.com)
The real decision is not whether one method sounds easier, but whether it matches the confirmed failure point. Next, the article explains what each access path means, what parts it actually reaches, when each method makes sense, and how Preventing solenoid failures starts with correct diagnosis and fluid care rather than guesswork.
What Is the Difference Between Pan-Drop Access and Full Teardown in Transmission Solenoid Repairs?
Pan-drop access is a limited repair path that reaches the lower service area of the automatic transmission, while full teardown is a deep disassembly path that reaches internal assemblies beyond normal pan service.
To better understand that difference, think about access depth rather than just repair cost. The pan-drop method begins with draining transmission fluid, removing the transmission pan, and often removing the filter. On many conventional automatics, that opens access to the valve body area and to some shift solenoids, pressure control solenoids, or solenoid supports. By contrast, a full teardown usually means the transmission is removed from the vehicle, separated further on the bench, and inspected past the point where routine service stops.
What Does Pan-Drop Access Mean for Transmission Solenoid Repairs?
Pan-drop access means the repair stays in the vehicle and focuses on components that can be reached from below after pan removal. In practical terms, the technician drains fluid, removes the pan, checks the filter, inspects the magnet and debris, and then determines whether the needed solenoid sits in the exposed service area. That is why this approach is often the first serious consideration when scan data points to a specific solenoid code and the transmission family is known to have in-pan serviceable solenoids.
This matters because access is not the same as certainty. A pan drop can expose the service area, but it cannot automatically rule out damage in clutch packs, bushings, drums, pump circuits, or other internal hydraulic passages. It is a focused access method, not a universal repair answer.
AutoZone’s replacement guidance notes that some transmission solenoids are inside the pan, attached to the valve body, or externally accessible, which is exactly why pan-drop access can be enough on some vehicles but not all.
What Does Full Teardown Mean in a Transmission Repair Context?
Full teardown means the repair goes beyond service access and into assembly-level disassembly. That can include transmission removal, deeper case opening, valve body overhaul, internal clutch inspection, separator plate work, or replacement of integrated control assemblies that cannot be serviced from a simple pan opening.
This route becomes necessary when a vehicle shows repeated failure after a simpler repair, when debris suggests internal damage, or when the design itself blocks access. Modern transmissions often package solenoids, control valves, harnesses, and adaptive control elements in ways that reduce simple in-car serviceability. In those cases, the transmission may need to come out or the control assembly may need to be removed as a larger unit.
Ford service guidance for harsh or delayed shifts on the 10R140 shows that when a break-in routine and adaptive learning do not solve the condition, the next step can be to overhaul the main control valve body rather than stop at a basic service-level approach. (fordservicecontent.com)
Can a Transmission Solenoid Be Reached With a Pan Drop Only?
Yes, a transmission solenoid can often be reached with a pan drop only when the transmission design places the solenoid in the pan-accessible valve body area, the diagnosis is specific, and no deeper damage is suspected.
However, the phrase “can be reached” needs careful use. A solenoid may be physically visible after pan removal, yet the repair may still require removing supports, harnesses, the valve body, or related control modules. In other words, a pan drop may start the job without necessarily finishing it.

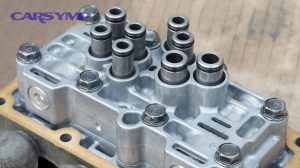

Which Solenoids Are Usually Accessible After Removing the Pan?
Solenoids that are commonly accessible after pan removal include many traditional shift solenoids, some pressure control solenoids, and some torque converter clutch control solenoids mounted in or on the valve body area. In these designs, the work flow stays relatively direct: drain fluid, remove pan, remove filter if needed, disconnect harnesses, remove the faulty unit, install the new one, then refill and verify.
This is why the phrase transmission solenoid replacement can mean very different labor times from one vehicle to another. On service-friendly designs, the job resembles advanced pan service plus electrical care. Hyundai technical bulletins, for example, show procedures where the pan comes off, the valve body area is accessed, and individual solenoids are replaced by removing their supports and pins. (static.nhtsa.gov)
The benefit of these layouts is not just lower cost. They also reduce the number of disturbed assemblies, which lowers the chance of a large-scale reassembly error when the problem is genuinely isolated to one accessible solenoid.
Which Solenoids Usually Require More Than a Pan Drop?
Solenoids usually require more than a pan drop when they are buried in integrated mechatronic units, packaged in control valve assemblies that must be removed as a unit, or tied to designs where the valve body itself is not truly serviceable in place. CVTs and newer electronically dense automatics are the most common examples.
Some Nissan CVT service bulletins show cases where the valve body assembly is replaced as a control valve unit rather than treating the repair like a simple in-pan swap. That kind of service path highlights the limit of the pan-drop idea: the pan opening may be part of access, but the repair is no longer “pan-drop only” in the simple sense. (static.nhtsa.gov)
This is also where Solenoid failure symptoms can mislead owners. Hard shifting, delayed engagement, and limp mode may point toward a solenoid problem, but they can also appear when the deeper issue is valve wear, internal leakage, clutch damage, or contamination severe enough to affect multiple circuits. AutoZone’s diagnostic guidance similarly warns that related parts or additional damage can exist even when a bad solenoid seems likely.
How Do Pan-Drop and Full Teardown Compare in Access, Labor, Cost, and Risk?
Pan-drop wins in lower labor and lower entry cost, while full teardown is better for diagnostic certainty, broader inspection, and repairs that extend beyond the pan-accessible service area.
To make that comparison easier to follow, the table below summarizes what each approach usually changes for the vehicle owner.
| Criterion | Pan-Drop Access | Full Teardown |
|---|---|---|
| Access depth | Lower service area, filter, some valve body/solenoid components | Full or near-full internal access |
| Labor time | Lower in many serviceable designs | Higher because removal and disassembly increase steps |
| Fluid usage | Usually lower | Usually higher |
| Parts disturbed | Fewer | Many more seals, gaskets, assemblies, and fasteners |
| Diagnostic certainty | Good when the fault is isolated and confirmed | Better when the problem may be broader |
| Cost profile | Lower upfront | Higher upfront |
| Risk profile | Risk of incomplete repair if diagnosis is shallow | Risk of higher cost but stronger root-cause visibility |
Is Pan-Drop Access Faster and Less Expensive Than Full Teardown?
Yes, pan-drop access is usually faster and less expensive because it uses fewer labor hours, less fluid, and fewer replacement parts tied to full disassembly. That makes it attractive when the code history, symptom pattern, and service information all point to an accessible solenoid or valve body-area fault.
The lower cost comes from the narrow scope. AMSOIL’s service comparison explains that a pan drop generally uses less fluid than a more complete service, and its example shows how quickly fluid volume changes the bill. That same logic carries into repair access: fewer disturbed parts usually mean fewer billable hours. (blog.amsoil.com)
Still, a cheaper repair is only cheaper when it works the first time. If the real issue includes clutch material, stuck valves, heavy debris, or multiple hydraulic faults, the initial savings disappear because the transmission needs to be reopened or removed later.
Does Full Teardown Provide Better Repair Certainty Than a Pan Drop?
Yes, full teardown provides better repair certainty because it exposes the internal condition of the transmission instead of isolating the job to one accessible area. That broader view matters when symptoms overlap.
For example, a vehicle may arrive with delayed shifting and a solenoid code, but the pan may reveal heavy friction material, metal on the magnet, burnt fluid, or evidence of widespread valve body wear. At that point, replacing one solenoid without wider inspection becomes a gamble. A teardown allows the technician to inspect sealing surfaces, clutch damage, bushings, pumps, valves, and assemblies that a pan drop cannot fully evaluate.
Ford’s 10R140 guidance shows this decision path clearly: after initial routines, the next step can be main control valve body overhaul plus an adaptive learning drive cycle. That is a deeper, more certain repair path than a narrow service-only attempt. (fordservicecontent.com)
When Is a Pan Drop Enough, and When Is Full Teardown Necessary?
A pan drop is enough when the diagnosis confirms an accessible solenoid-area fault and the transmission shows no clear signs of deeper failure, while full teardown is necessary when design limits access or when symptoms and debris suggest broader internal damage.
To better understand the decision, match the repair path to the evidence instead of the hope. Good repair planning starts with codes, scan-tool data, fluid condition, and known service information for the specific transmission family.
When Is a Pan Drop the Right Repair Approach?
A pan drop is the right approach when three things line up: the transmission design supports in-pan service, the fault points to a reachable component, and the transmission does not show strong evidence of larger internal damage. This usually means one or more transmission DTCs point to a specific solenoid circuit, the fluid is not heavily burnt or metallic, and the transmission still behaves like a hydraulically functional unit rather than a failing rebuild candidate.
This is also the best case for a focused transmission solenoid replacement. The technician can remove the pan, inspect contamination, verify the accessible component, replace the solenoid or service part, refill the unit with the correct fluid, and then confirm repair through road testing and scan checks.
Hyundai service bulletins provide a useful model: remove the oil pan, remove the valve body or supports as required, replace the related solenoid based on the stored DTC, reinstall with new sealing parts, and refill fluid to a temperature-based level procedure. (static.nhtsa.gov)
When Is Full Teardown the Better or Required Option?
Full teardown is the better or required option when the design hides the failed component beyond easy service access, when repeated problems continue after a simpler repair, or when the transmission shows signs that the solenoid is only one part of the failure.
Those warning signs include heavy friction material in the pan, metal debris, burnt fluid, slipping under load, multiple ratio errors, repeated limp mode, or evidence that the valve body and clutch circuits need more than a part swap. CVTs especially may steer the repair toward valve body assembly replacement rather than a simple individual-solenoid service path. Nissan bulletin language shows that some DTC patterns lead directly to control valve assembly replacement instructions and TCM-related setup steps. (static.nhtsa.gov)
This is the point where many DIY repairs go wrong. The owner sees a code, buys a part, and assumes a single solenoid caused everything. In reality, the solenoid may be a symptom carrier rather than the whole failure. That is why correct diagnosis matters more than parts optimism.
What Should DIYers and Car Owners Know Before Choosing Between Pan-Drop Access and Full Teardown?
Yes, DIYers and car owners should think about service information, tools, cleanliness, and failure risk before choosing a repair path, because accessibility alone does not make the repair safe, accurate, or complete.
More specifically, automatic transmissions punish contamination and assembly errors. Even a simple pan-drop job can go wrong if the wrong fluid is used, the harness is pinched, the pan bolts are over-tightened, the filter seal is damaged, or the transmission is refilled to the wrong level.
Is Pan-Drop Access DIY-Friendly for Transmission Solenoid Repairs?
Yes, pan-drop access can be DIY-friendly when the vehicle has a serviceable design, the repair manual is clear, and the person doing the job understands fluid handling, cleanliness, torque procedure, and basic diagnostics.
AutoZone’s DIY guidance outlines the typical process: locate the solenoid, drain fluid, remove the transmission pan, possibly remove the filter, replace the solenoid, reassemble, refill, and verify operation. That sequence is realistic for experienced DIYers, but only when they also respect the hidden details. Those details include battery disconnect, safe lifting, correct gasket handling, correct fluid type, and post-repair checks for leaks and codes.
DIY-friendly does not mean low consequence. A mistake in a pan service job can create a leak, a low-fluid condition, or an electrical issue that feels like a bigger transmission failure. That is why the smartest DIYers spend extra time on diagnosis before spending money on parts.
Is Full Teardown Realistically a Professional Repair?
Yes, full teardown is realistically a professional repair because it demands specialized tools, a clean work environment, detailed service procedures, parts measurement, and enough transmission knowledge to separate root cause from collateral damage.
A full teardown also raises the stakes of every mistake. Improper clutch clearance, damaged seals, incorrect valve body installation, missed adaptation procedures, or even a small contamination issue can ruin the result. In other words, a teardown does not simply require more time; it requires a different level of process control.
According to Ford diagnostic and service documentation, transmission work can include adaptive learning routines, transmission characterization, solenoid identification functions, and reset procedures after repair. That level of post-repair integration is one reason professional repair becomes the safer choice as access depth increases. (fordservicecontent.com)
What Transmission Design Details Can Change Pan-Drop vs Full Teardown Access?
Transmission design details can completely change access requirements because solenoid layout, valve body packaging, case architecture, and control strategy determine whether the repair is a simple in-pan service or a deeper disassembly job.
Besides the basic comparison, this is where micro-level differences matter. Two vehicles can both have “shift solenoid” codes yet require very different labor because their transmissions package the components differently.
Do Valve Body, Solenoid Pack, and Mechatronic Designs Change Access Requirements?
Yes, they do. Traditional valve body layouts often allow individual solenoid service after pan removal, while integrated solenoid packs or mechatronic assemblies can turn the same symptom into a larger assembly-level repair.
That distinction explains why owners often see conflicting repair stories online. One vehicle may let the technician replace a single solenoid support and pin; another may require removal of a control valve assembly, harness routing checks, and unit-specific setup. Hyundai bulletins show both the practicality and the precision of this work by detailing supports, pins, O-rings, and valve body reinstallation steps around specific solenoid DTCs. (static.nhtsa.gov)
Can Transmission Case Design Determine Whether Full Teardown Is Required?
Yes, case design can determine the repair path because some transmissions allow meaningful access from below, while others place critical components where the case, subframe, or internal architecture blocks service. Case-split designs, tightly packaged transaxles, and some CVT layouts often shift the job toward assembly removal or deeper bench work.
This is why the phrase “drop the pan and replace the solenoid” should never be treated like a universal rule. The vehicle-specific transmission family matters more than the code label on a scan tool.
Does the Repair Require Fluid Service, Filter Replacement, or Relearn Procedures?
Yes, many repairs require all three. A pan-drop repair often includes fresh fluid and a new filter or gasket, while deeper control repairs may also require temperature-based fluid leveling, adaptation resets, or learning routines so the transmission control system can operate correctly after the mechanical work.
Ford documentation lists functions such as TCM adaptive learning, clear transmission adaptive tables, and reset transmission tables. Nissan CVT service information also points to control-valve-related setup steps after installation. These procedures show that post-repair success depends on more than bolting in a new part. (fordservicecontent.com)
That same idea supports Preventing solenoid failures over the long term. Clean fluid, correct fluid specification, proper repair procedure, and early response to shifting complaints all reduce the chance that contamination or hydraulic stress will turn a small control problem into a larger transmission failure. AutoZone’s symptom guidance also highlights fluid contamination and electrical issues as common contributors to solenoid trouble. (autozone.com)
Why Do OEM Service Procedures Matter More Than Generic Repair Advice?
OEM and model-specific procedures matter more because access, torque values, fluid specifications, adaptation steps, and parts grouping vary sharply by transmission family. Generic advice may tell you what is possible in theory, but service literature tells you what is correct for the exact unit in front of you.
That is the best closing rule for this topic. Pan-drop access is not “good” or “bad,” and full teardown is not automatically “overkill.” Each method fits a different level of confirmed failure and a different transmission design. When diagnosis is specific, pan-drop access can solve the problem efficiently. When symptoms, debris, or architecture point deeper, full teardown protects the repair from false economy.
In short, the right choice is the one that matches the evidence, preserves the transmission, and avoids treating one fault code as the whole story.
